Available Models


2 models are available in this range

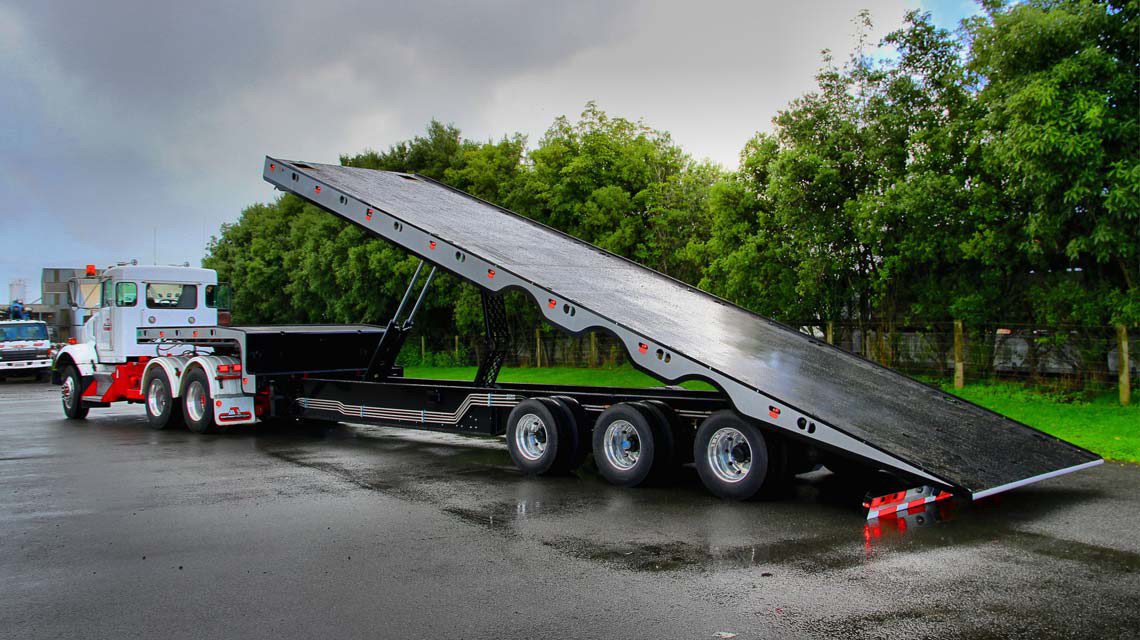

3A Tilt Trailer

3 Axle Tilt trailer

3A Tilt Trailer

The 3 Axle Tilt Trailer is a versatile heavy transport trailer that is suitable for all freight tasks. Designed to be self-loading with the tilt deck it is the ideal recovery trailer solution

STANDARD SPECIFICATIONS
Width 2490mm
Deck Height 940mm
Axles 17.5″
Axle Spacing 1300mm – 1300mm
Suspension Hendrickson Air Suspension
Brakes 12-1/4” x 7-1/2” with Outboard Drums
Brakes ADR
Hydraulics Truck hydraulics
Hydraulics All lines to have removable couplings
Tyres 13 x 235 x 17.5
Wheels Steel Wheels
Lighting Removable revolving light at rear
King Pin 50mm and 90mm drop in king pin
Toolboxes Two sliding tool boxes ( one each side)
Signage Oversize sign (Removable )
Landing Legs Heavy Duty Pin Type
Deck Material 5mm Plate



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish
Tyres Extra spare Tyre and Steel wheel.
Tyres Specific branded tyres. (Please State)
Spare Tyre Carrier Spare tyre carriers; on one side takes a 17.5 and the other side will take a 22.5 tyre (winch up type)
Remote Control Remote control Hydraulics
Ship Locks Twist locks 3 way
Water Tank Plastic water tank
Winch 30,000lb winc

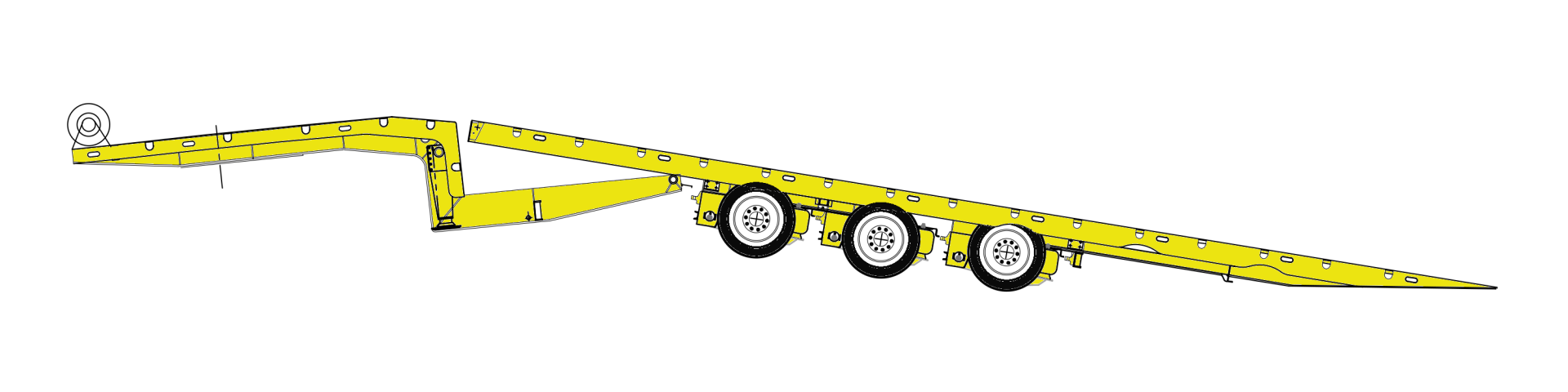

3A Tilt Slide Trailer

3 Axle Tilt Slide Trailer

3A Tilt Slide Trailer

The 3 Axle Tilt Slide Trailer is a versatile heavy transport trailer that is suitable for all freight tasks. Designed to be self-loading with the sliding tilt deck it is the ideal recovery trailer solution.

STANDARD SPECIFICATIONS
Length 13716mm
Deck Length (Overall) 10679mm
Axles 15″ 10 Stud
Suspension Hendrickson air suspension with raise and lower valve
Brakes 12-1/4” x 7-1/2”
Brakes ADR ABS with bayonet fi tting on front
Hydraulics Rotary fl ow divider Fitted on gooseneck
Tyres 215 x 70 x 17.5
Wheels Alloy
Spare Tyre Carriers Single mounted on headboard
Lighting LED Multi volt
Controls Remote to tilt, slide and winch operations
Rub Plate 8mm Rubplate
King Pin 50mm
Toolboxes 2 x toolboxes
Landing Legs Flat feet 2 speed K-Hitch
Deck Material 6mm Hardox
Top Deck 4mm Hardox
Tie Down Points 14 x bottom deck 6 x top deck
Rope rails 25mm full length top deck only.
Ship Locks 3 x way twist locks with storage for pedestals.
Winches 2 x 20,000lb ape stumpy hydraulic with 16mm cable and tensioners & free spool



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish
Tyres Extra spare Tyre and Steel wheel.
Tyres Specifi c branded tyres. (Please State)
Remote Control Remote control Hydraulics
Ship Locks Twist locks 3 way
