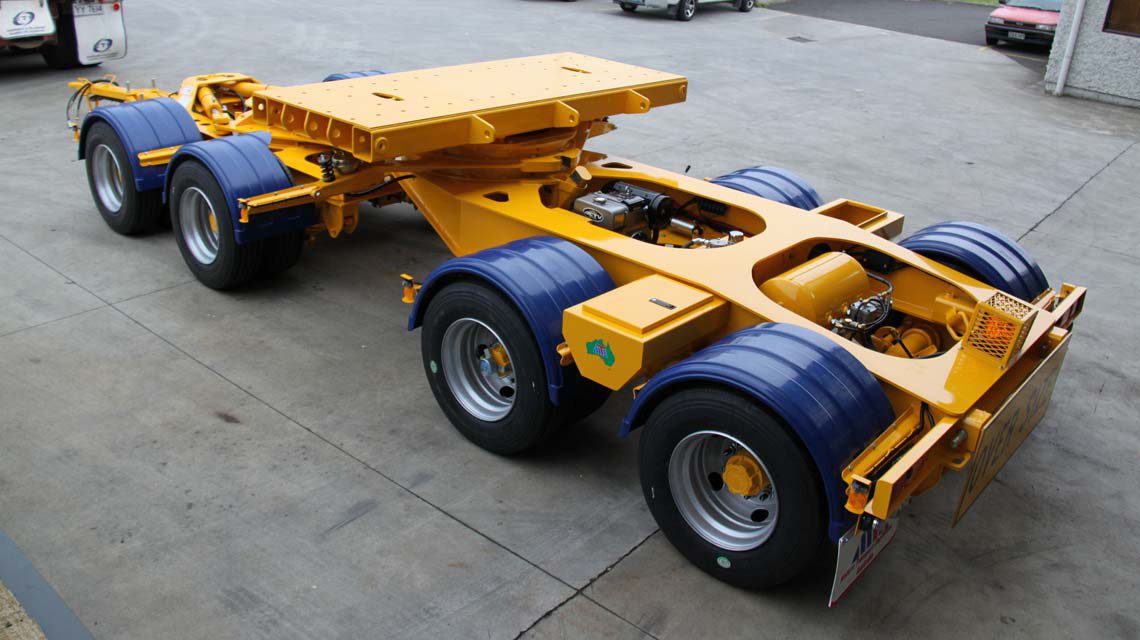

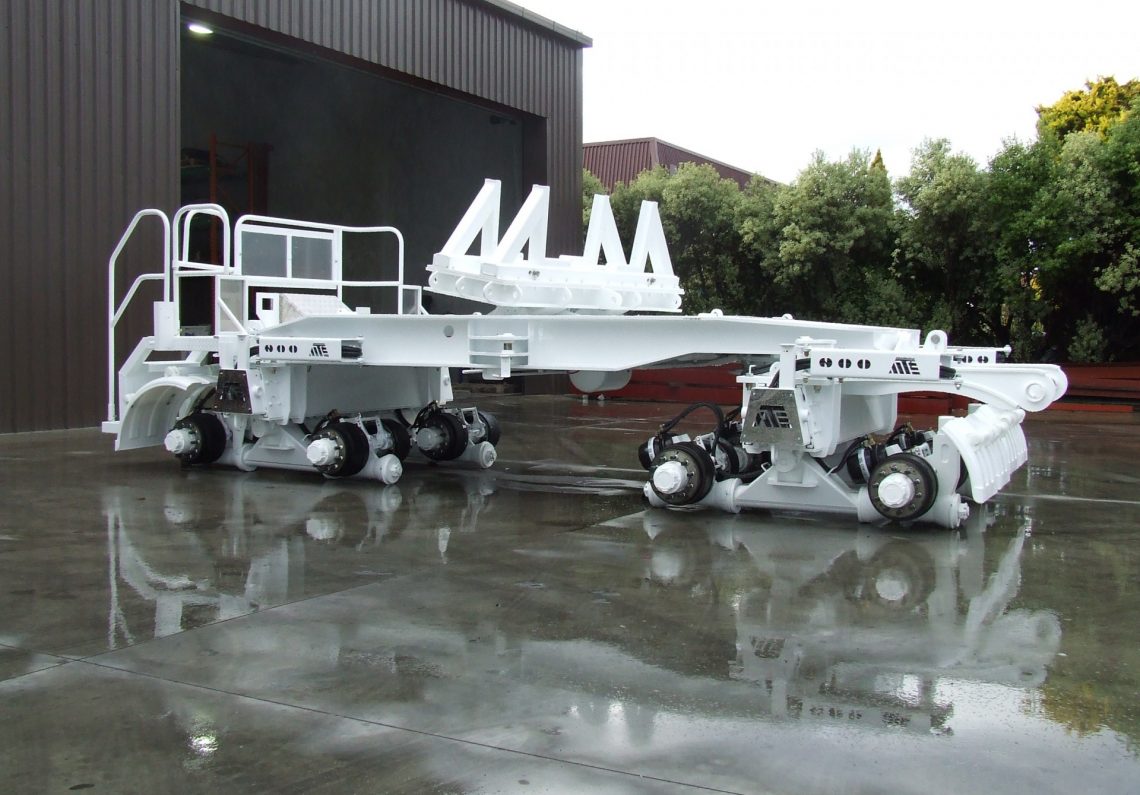

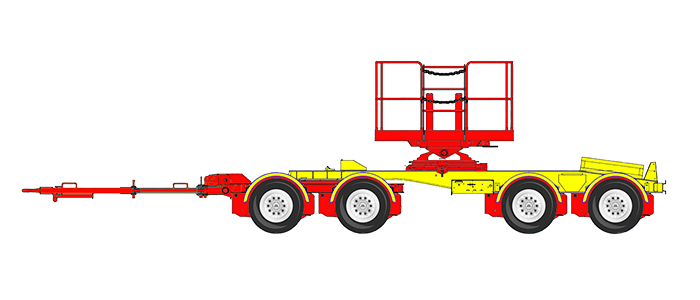

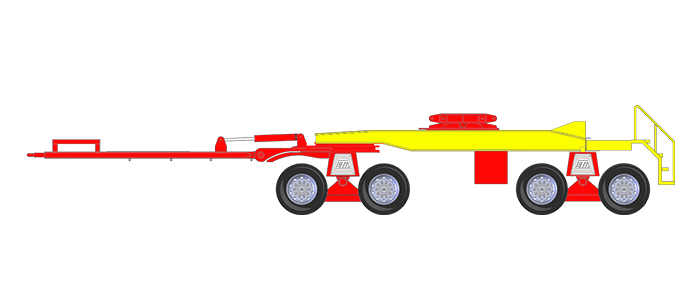

| STANDARD SPECIFICATIONS (APPROX) |
| Dimensions |
Width closed 2500mm – Width open 4310mm
NOTE: Dimensions in this document are indicative only & may not be accurate to the latest model, an updated layout drawing showing true measurements should be supplied & signed off by the customer |
| Lashings |
4 x 5t ‘Drop D’ Tie down Lashings (2x in front & behind Bolster on top of chassis)
4 x 16mm Tie down Chain Lugs (one on each side under each wide box) |
| Rear Platform |
Tread plate platform at the rear of the trailer with Safety railings
Bolt-on Stainless tread plate cover over hydraulics behind bolster for maintenance access |
| Axles |
Axle spacing – 1250mm – 2400mm – 1250mm
MTE Axles 17.5”, Ten Stud, 225PCD Axles with Outboard Drums &
12-1/4” x 7-1/2″ Brakes |
| Suspension |
R8 Dolly Trunnion Suspension |
| Brakes |
EBS Brake System |
| Capacity (GVW) |
GVW – 67,500kg
Tare weight from 12460kg (approx.) |
| Drawbar |
Heavy Duty Drawbar with 50mm tow eye, fold-down landing leg &
Hydraulic lift with Float mode
(Provision for beam fixture on drawbar, see extras for beam fixture) |
| Ball Race |
Double Ball Race for 90-degree steering |
| Bolster |
Bolster for Jinker
Air Operated Bolster Locks for Manual & Bolster Steering |
| Steering Modes |
Bolster Steer
Bogie Steer
Full Float mode
Ball Race on lead Bogie with Hydraulic cylinders to steer the front Bogie |
| Hydraulic Supply |
9.0 HP Diesel Power pack, electric start with Battery
Mounted under the main chassis below the bolster with stainless access panels on all sides |
| Control Valves |
Main control panel for Steering, Locks, Drawbar & Widening located on rear man platform behind bolster with removable stainless cover for maintenance – Controls include:
– 2x Hydraulic Levers for Widening & Narrowing Front & Rear Suspensions
– 1x Hydraulic lever & 1x Diverter valve for Drawbar controls
– 1x Hydraulic Lever for Steering Left & Right
– 2x Switches for Steering Modes
– Air Switch Control for Bolster Locks
– Yard Release Button
Ignition Key, Winch control, Beacon & Light Switches Located on driver’s side between the front & rear suspensions |
| Hoses |
One Set of Air leads with automatic coupling, Electrical cable with 7-pin plug & ABS lead to run down drawbar for towing Jinker
Drawbar leads can be fully removed from the coupling plate at the front of the trailer
ABS, Electrical & Air Coupling Plate on the bolster for umbilical connection
(See extras for umbilical options) |
| Lights |
LED lights to ADR Standards
LED Side Lights x2 per side
Amber round reflectors next to each side light
4x White LED marker lights facing forward on front & rear wide-box (Left & Right)
4x White Rectangle Reflectors below Amber markers on front & rear Wide-Box
LED Stop/Tail/ Indicator Combination lights on the back of the wide-box, with a plexiglass protection cover
Red round Reflectors next to the tail taillights
1x Number Plate Lamp
Rotating LED Beacon at the rear
4x Spotlights facing Front & Rear Suspensions (one per suspension Left & Right) |
| Signage |
One-piece Oversize Sign mounted to the rear of the trailer on a pull-out bracket
Controls: Warning Stickers fitted next to controls
Crush Hazard stickers where applicable
Hazard Panels on Rear
‘Do not overtake’ signage on the Rear
Grease reminder stickers with grease points
MTE Plaque on both sides of the trailer |
| Tyres |
215 x 17.5 x 16ply |
| Wheels |
32 x – 17.5 x 6.00” – 10 Stud, 225 PCD Steel Wheels
32 x – 215/75 x 17.5”, 16 Ply – Synergy Tyres |
| 5th Wheel |
5th wheel on Double Ball race for 90° steering |
| Hub odometer |
1 x Hub odometer |
| Ballrace |
Ballrace on lead bogie |
| Greasing |
Greasing for Suspensions & Axles/Brakes out to easily accessible manual grease blocks
Remote Grease Lines to Grease points on the turntable |
| Ringfeder |
Ringfeder attachment (no ringfeder) for empty towing |
| Mud Guards |
Plastic Mudguards over Wheels
(Please state the colour of the mudguards) |
| Paint |
Sandblasted, etch primed and painted in two-pack to your fleet colours
(Please supply your paint codes & layout upon acceptance) |
