Modern Transport – B-Trains
The 6 Axle B-Train Low Loader is one of our most popular trailers, Designed for transporting multiple plant or machines at one time, with increased manoeuvrability and stability over a standard low loader.
B-Trains
Available Models
1 models are available in this range
6A B-Train Low Loader

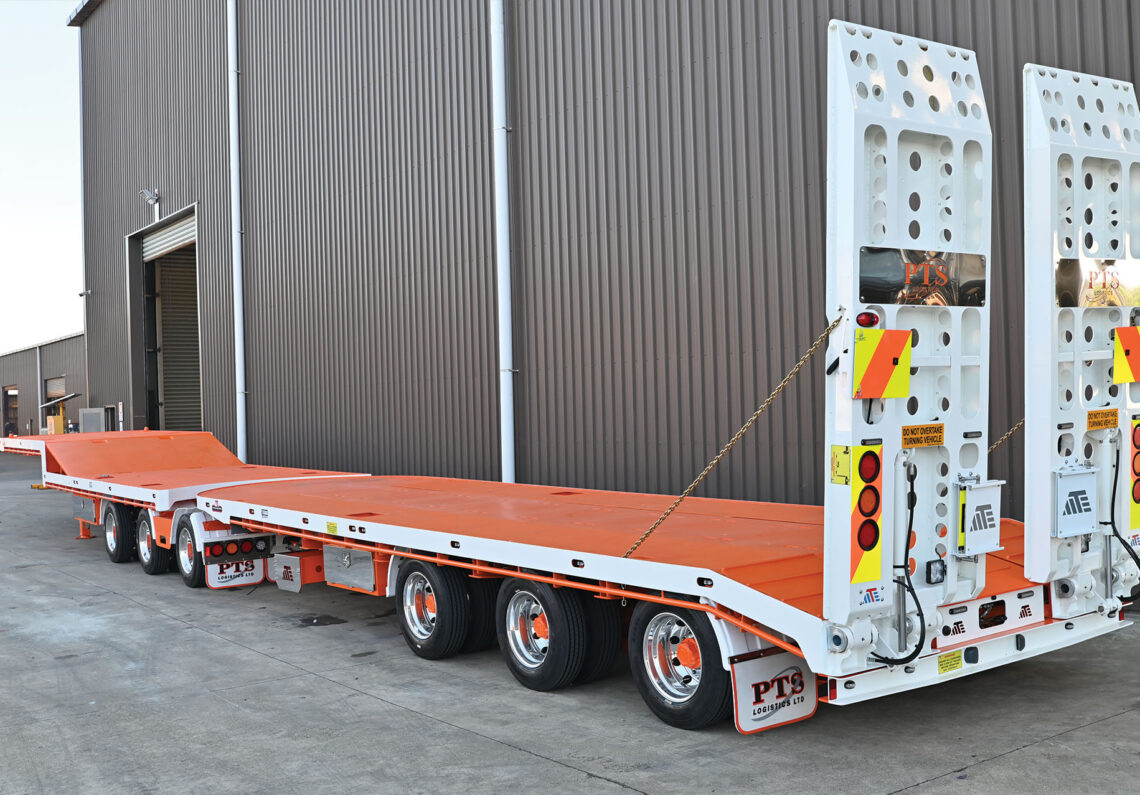

6 Axle B-Train Low Loader
6A B-Train Low Loader
The 6 Axle B-Train Low Loader is one of our most popular trailers, Designed for transporting multiple plant or machines at one time, with increased manoeuvrability and stability over a standard low loader. Customisable with optional extras such as widening decks and key hole slots, the B-Train will carry any load.
| STANDARD SPECIFICATIONS | |
| Length | 19300mm |
| Axles | 6 – 19.5″ MTE outboard axles |
| Suspension | Air suspension with dump on rear unit |
| Brakes | EBS |
| Tyres | 19.5” tyres |
| Wheels | Steel wheels |
| Power Source | Truck Hydraulics |
| Lighting | Full LED Lights |
| Rub Plate | Fixed Rub Plate |
| 5th Wheel | 50mm sliding fi fth wheel on front unit. |
| King Pin | 50mm King Pin |
| Ramps | 2400mm x 680mm Hydraulic Ramps at rear |
| Toolboxes | 1x 900mm Lockable Toolbox with stainless lid |
| Dunnage Tray | 1x 2400mm Dunnage tray |
| Chain Bins | 1x Covered chain bin on rear beaver tail between ramps |
| Deck Material | 300 x 50mm pine timber on outsides of deck |
| Deck Material | Steel Checker plate down center of decks & above wheels on rear unit |
| Tie Down Points | Rope Rail lashing under 100mm RSJ coaming (both units) |
| OPTIONAL EXTRAS | |
| Wheels | Aluminium Wheels Machined Finish (12.8kg / Wheel) |
| Wheels | Aluminium Wheels Polished Finish (12.8kg / Wheel) |
| Tyres | Spare tyre and steel wheel (28kg) |
| Ramps | Custom Ramps up to 2.7m Long |
| Ramps | Air operated pop-up ramps in front unit to top deck. |
| Ship Locks | Ship lock Pockets for 2 x 20’ containers. (Includes stools required for front unit). (8x Ship locks supplied). |
| Signage | Slide out chevrons with Lights, Front & Rear. |
| Widening | Deck Widening Rear Unit. |
| Railing | Custom Coaming Rails & Lashings |
| Keyhole Slots | Keyhole slots down both sides of decks. |
| Power Pack | 5 HP Petrol power pack (Pull start) |
| Power Pack | 5 HP Petrol power pack (Electric start) |
| Power Pack | 12V Electric Power pack (Can be fitted inside a toolbox). |
| Storage | Extra Lockable 900mm Toolbox with stainless lid. |
| Storage | Extra Dunnage Tray (2400mm) |
| Winch | 20,000lb Hydraulic Winch fitted with Remote. |
| Restraint Gear | Load Restraint Kit: 8x 4.5m long 10mm transport chain, with clevis grab hooks at one end. 8x Ratchet chain twitches 10x load binders 9m long, 2500kg rated |
