The Panel trailers are built to transport concrete panels, the panel trailer is equipped with removable panel frames and hydraulic panel clamps. The hydraulic panel clamps can extend to handle more pressure.
1 models are available in this range

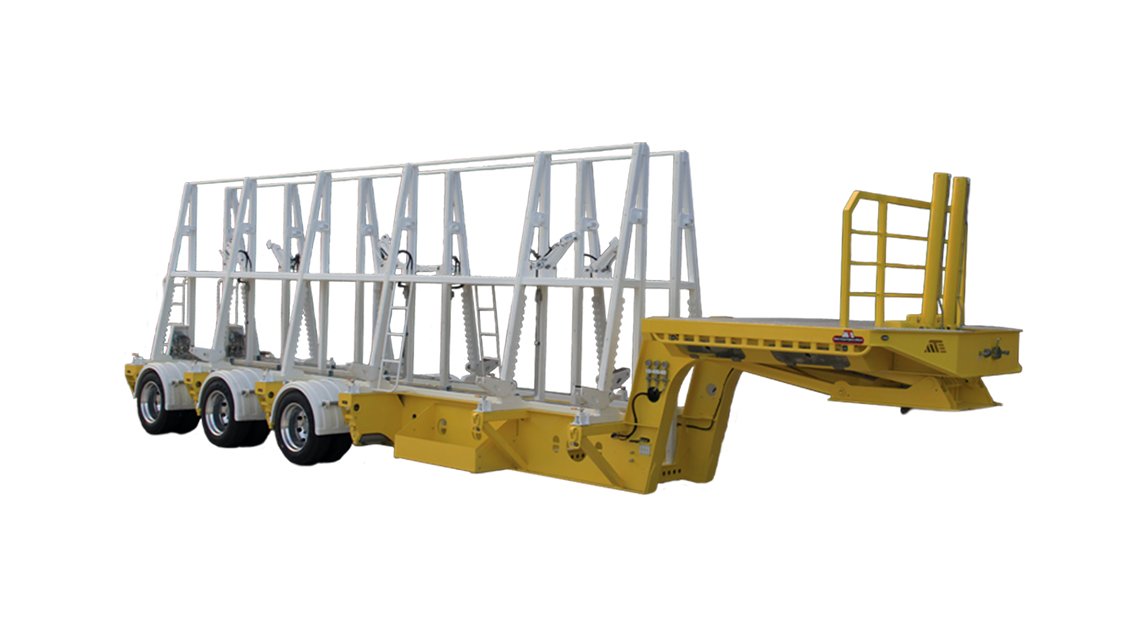

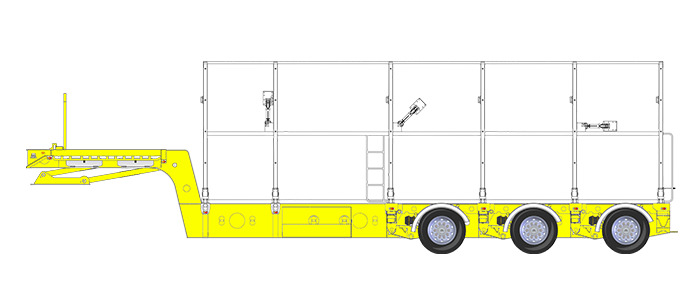

3 Rows of 4 Hydraulic Suspension Panel Trailer
The 3 Rows of 4 Hydraulic Suspension Panel trailer is built to transport concrete panels, the panel trailer is equipped with removable panel frames and hydraulic panel clamps.
The hydraulic panel clamps can extend to handle more pressure. An extendable option is available.
| STANDARD SPECIFICATIONS | |
| Width | 2500mm (Bottom Deck) |
| Deck Height | 900mm (Travelling) |
| Internal Deck Height | 250mm Fully Lowered |
| Forward Length | 9.5 metres |
| Overhang | 3.9 metres rear overhang (optional can be shorter) |
| Lift Height | 600mm (suspension and gooseneck) |
| Axles | MTE 19.5″ Eight Stud Axles |
| Axle Spacing | 1600mm |
| Suspension | MTE Hydraulic Suspension, 10,000kg Capacity |
| Brakes | Full air brake to ADR |
| Tyres | 265 x 19.5″ |
| Wheels | Steel Wheels |
| Lighting | Full LED |
| Turntable Height | Adjustable Turntable Height (1370mm std) |
| King Pin | 2″ |
| Landing Legs | Full weight landing legs heavy duty RHS type |
| Tie Down Points | Certified lashing ties |
| OPTIONAL EXTRAS | |
| Wheels | Aluminium Wheels Machined Finish |
| Wheels | Aluminium Wheels Polished Finish |
| Power Pack | 5 HP Petrol power Pack |
| Coating | Zinc |
