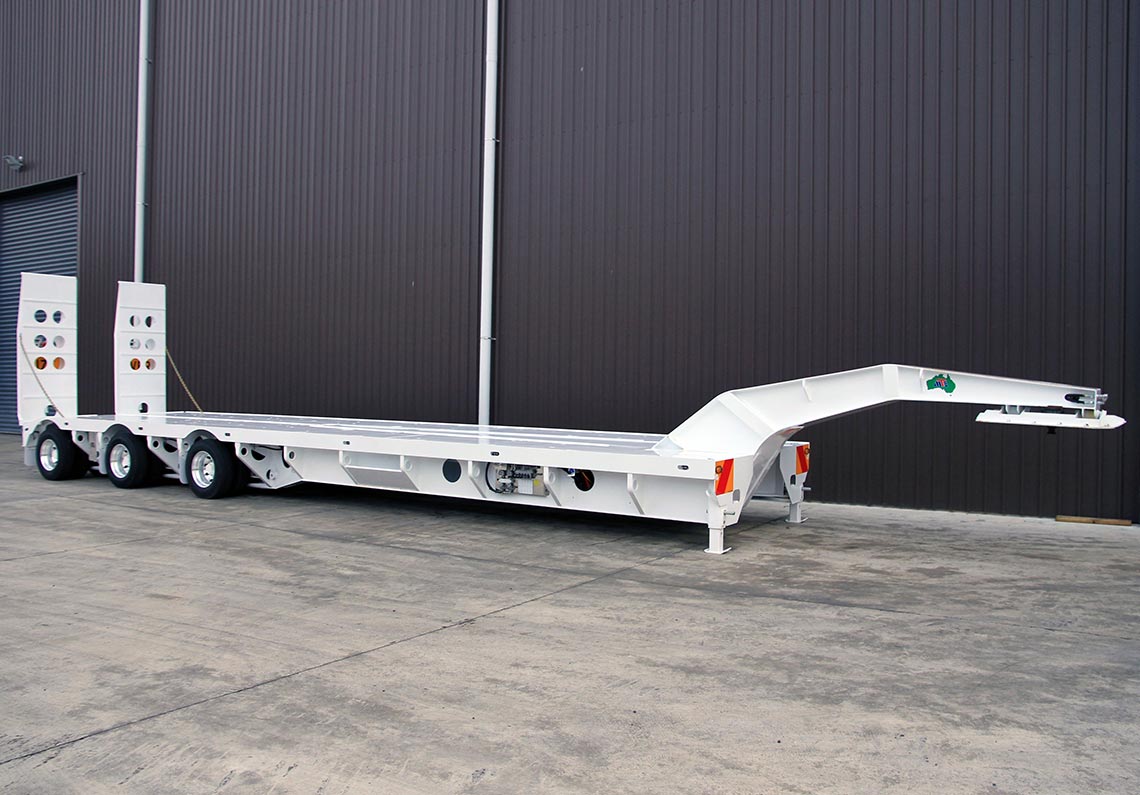

Light-Weight 3R8 Linkwing Trailer

Light-Weight Three Rows of Eight Linkwing

Light-Weight 3R8 Linkwing Trailer

The Light-Weight 3 Rows of 8 Linkwing is the lightest Linkwing available. specifically designed with increased manoeuvrability and payload capacity you can deliver to more places than ever before. The lightweight Linkwing saves on Tare weight which gives a capacity of up to 65,000kg GVM.

STANDARD SPECIFICATIONS (APPROX)
Dimensions & Widening	Deck Length (OA) – 11390mm Deck Length (Behind G/N) – 10300mm Deck Ride Height – 950mm Deck Lowered Height – 820mm Deck Raised Height – 1060mm Width 2500mm closed – Width 3700mm open Opening widths – 2500mm, 3100mm, 3500mm, and 3700mm. 150mm diameter front link pins – 100mm diameter rear link pins Widening by three hydraulic rams NOTE: Dimensions in this document are indicative only & may not be accurate to the latest model, an updated layout drawing showing true measurements should be supplied & signed off by customer
Deck Type	High tensile 690mpa steel construction with a fully enclosed deck
Axles	Axle Spacing – 1830mm – 1830mm MTE Axles 17.5” Ten Stud 225PCD Axles with Outboard Drums & 12-1/4” x 7-1/2″ brakes
Axle Retraction	Axle retraction to all axles to facilitate maintenance
Suspension	MTE Hydraulic Ball Type Suspension with low maintenance quick-change rams. Axle Retraction with lock-out taps all axles to facilitate maintenance. 2 x Retraction safety keepers supplied
Brakes	Pacific, Non-ABS Brakes. 12-1/4″ x 5-1/2″ brakes on outboard drums
Capacity (GVW)	GVW – 65,000kg Tare weight from 11,300kg (approx.)
Gooseneck Rub Plate King Pin	Fixed Height Gooseneck Skid plate Height – 1300mm at 920mm Deck Ride Height (State Skid Plate height if different from above) Single Position Oscillating skid plate 1 x MTE 90mm (3-1/2”) Drop-in King Pin supplied
Ramps	Ramps 2700mm x 900mm hydraulic
Landing Legs	Heavy Duty Pin Type
Hydraulic Supply	Hydraulic power source – truck. (See extras for power pack options).
Control Valves. Select preferred motor mounting side Passengers side Drivers side	Main Controls mounted under deck at front Hydraulic Controls include: Rear Wide – Widen/Narrow Front Wide – Widen/Narrow L/H Suspension – Raise/Lower R/H Suspension – Raise/Lower Ramps – Raise/Lower Gauges for load Indication L/H & R/H Suspension with lockout Taps Air switch Controls for Front & Rear Widening Locks Axle Retraction to all axles with shut-off valves to suspension cylinders
Lights / Beacon	LED lights to ADR 4198 LED Side Lights in combing x7 per side in combing rails 2 x LED Amber marker lights on front of pontoons Round Tail x4 & Indicator x2 Lights in Ramps Stop/Tail/Reverse/Indicator Combination 2394 lights in Bumper 1 x LED Rotating Beacon in Driver side ramp 1 x LED Number Plate Lamp Red Rectangle Reflectors in Bumper, one each side
Signage	Folding Oversize signs folding over ramps Reversible 600×200 Chevrons on Antiluce fasteners on rear Fixed Chevrons on Front of pontoons Stick-on 600 x 200 Chevron behind tail & indicator lights on Ramps 2 x Ramps Warning Stickers on each ramp (rear & outsides) Do Not Overtake Turning Vehicle Stickers on Ramps Crush Zone stickers where applicable Controls Warning Stickers by all control Valves & Taps
Wheels & Spares	24 x – 17.5 x 6” – 10 Stud, 225 PCD Steel Wheels 24 x – 215/75 x 17.5”, 16 Ply – Synergy Tyres Spare wheel carriers, Horizontal mount at front of gooseneck (Spares not included).
Hub odometer	1 x Hub odometer 416RPK for 215/75 17.5 Tyres
Greasing	Manual Greasing system 8 points per suspension out to a remote manual block. Manual Greasing to all other points
Mud Flaps	Mud flaps in front of & behind all Axles & Main controls
Chain Bins Toolboxes	1 x Chain bin mounted each side of spine below decks 2 x Open chain bins on each side of trailer
Power Source	Truck
Lighting	HELLA LED lights to ADR 4198 with 1 rotating light in ramp
Gooseneck	Fixed Height
Link Pins	150mm diameter front link pins – 100mm diameter near link pins
Signage	‘Do not overtake’ and sliding ‘OVERSIZE’
Deck Material	High Tensile 790mps steel construction with a fully enclosed deck
Paint	Sandblasted, etch primed and painted in two-pack to your fleet colours

OPTIONAL EXTRAS (APPROX)
Wheel & Tyres	Spare Tyre and Steel Wheel 17.5” (28kg steel wheel) Chrome Plated or Painted Steel Wheels (28kg) Alloy wheels (machined finish) 17.5” (13kg) Alloy wheels (polished finish) 17.5” (13kg) Alloy wheels (premium finish) 17.5” (13kg) Michelin Tyres trailer set. (in Lieu of standard) Hankook or Bridgestone Tyres trailer set. (in Lieu of standard) Spare Tyre Lift Crane, fixed pipe swivel mount with 12v winch at front of gooseneck (For lifting trailer tyres on & off flat stack carriers)
Skid-plate & Gooseneck	MTE 50mm (2”) Drop in Kingpin. Sliding Skid Plate with Pneumatic locks. (Locks in 100mm increments, switch located on the driver’s side of the skid plate).
Hydraulic Supply. Select preferred motor mounting side Passengers side Drivers side	5.5 HP Diesel power pack, electric start with battery 5.5 HP Petrol power pack, pull start only 5.5 HP Petrol power pack, electric start with battery.
Greasing	Centralised Automatic Greasing – to Brakes and Suspension – 48 Points (Suspension & Brakes) Centralised Automatic Greasing to all grease points except ramps. – 73 Points (Suspension, Brakes, Widening Cylinders, Wings, Locks, Gooseneck if applicable, adds 4 Points)
Shiplocks	Ship-Lock pockets for 20’ Containers at 2.5m Wide With 4x Double-ended Ship Locks supplied
Toolboxes / Chain Bins	Additional Open chain bin on side of trailer Lockable Stainless Lids for chain bins on sides of trailer Note: lids will cover access to cross-member lashings 6 x Lockable Toolboxes (3 on each side) that Allow access for Cross-member lashings between boxes. 2 x Small Lockable Toolboxes under Spare tyre Carriers on Gooseneck (one each side). LED Lights inside Toolboxes (wired into sidelight circuit).
Lights	2nd LED Rotating Beacon mounted in Passengers side Ramp. Auxiliary Light Plugs x4 mounted at Front (behind landing legs) & at Rear (on ramps) 2x Spotlights on rear wings facing rearward towards inside wheels
Water Tanks Circle preferred Tank mounting side Passengers side Drivers side	Stainless Steel water tank and Tap Mounted to gooseneck Plastic Water Tank Fitted Mounted to gooseneck
Deck Surface	Anti-slip grit to decks (can be done in any colour). Rubber belting, profile cut to fit deck Supplied Bolted deck
Paint	DTwo Tone paint
Ramps	Double fold ramps 3700 x 900mm
Remote Control	10 Function remote system for operating Gooseneck, Suspension & Widening
Ship Locks	Ship-lock pockets for 20′ and 40′ containers & 4 x double-ended ship locks
Power Pack	5.5 HP Diesel power pack, electric start with battery
Power Pack	5.5 HP Petrol power pack, pull start only
Power Pack	5.5 HP Petrol power pack, electric start with battery
Gauges	Gauges for load indication
Storage	6x Lockable toolboxes (3 on each side)
Odometer	Hub odometer
Signage	Folding “OVERSIZE’ signs

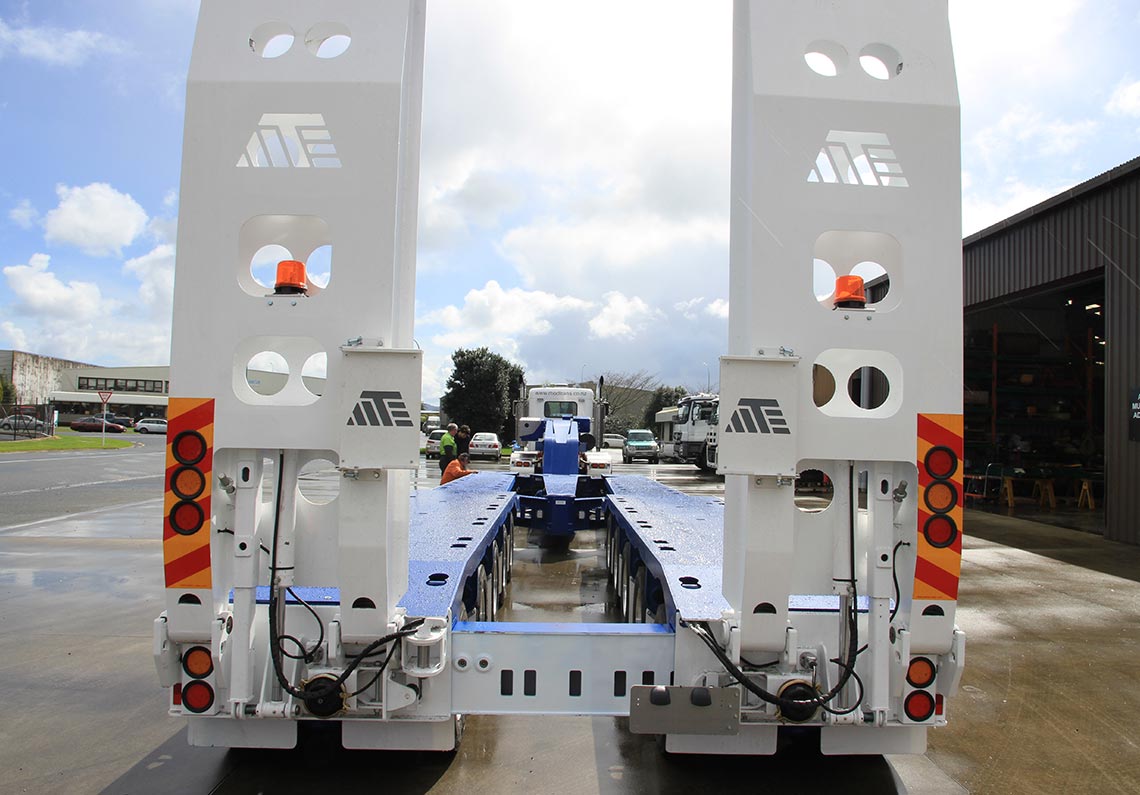

3R8 Linkwing Trailer

Three Rows of Eight Linkwing

3R8 Linkwing Trailer

The 3 Rows of 8 Linkwing is our most popular trailer. With an 80,000kg GVM, hydraulic widening and hydraulic suspension. It has the added bonus of being able to clip on more of 8’s to handle any job. The linkwing can raise, lower, widen its decks and can be optioned with a internal hydraulic gooseneck. The linkwing is fully customisable to meet your individual transport needs.

STANDARD SPECIFICATIONS (APPROX)
Dimensions & Widening	Deck Length (Behind G/N) – 12200mm Deck Ride Height – 950mm Deck Lowered Height – 820mm Deck Raised Height – 1060mm Closed Width 2500mm – Open Width 4270mm Opening widths – 2500mm, 2700mm, 3100mm, 3500mm, 3750mm, 4000mm, and 4270mm 150mm diameter front link pins – 100mm diameter rear link pins Widening by four hydraulic rams NOTE: Dimensions in this document are indicative only & may not be accurate to the latest model, an updated layout drawing showing true measurements should be supplied & signed off by customer
Deck Type	High Tensile 690mpa steel construction with a fully enclosed 10mm thick deck & two wear straps on neck
Lashings	Figure ‘8’ Lashings to top of decks Lashings on each cross member 3 x 16mm Chain Lugs on each side of neck and 1x behind each Landing Leg. Small recessed lashings for dunnage blocks at front of both decks (x4 each deck) Twitch holders on both sides of gooseneck
Axles	Axle Spacing – 1830mm – 1830mm MTE Axles 17.5”, Ten Stud, 225PCD Axles with Outboard Drums & 12-1/4” x 7-1/2″ Brakes
Suspension	MTE Hydraulic Ball Type Suspension with low maintenance, quick change rams Axle Retraction with lock-out taps all axles to facilitate maintenance. 2x Retraction safety keepers supplied
Brakes	Pacific, Non-ABS Brakes. 12-1/4″ x 5-1/2″ brakes on outboard drums
Capacity (GVW)	GVW – 80,000kg Tare weight from 12,800kg (approx.)
Gooseneck Rub Plate King Pin	Fixed Height Gooseneck. Skid plate Height – 1300mm at 920mm Deck Ride Height. (State Skid Plate height if different from above). Two-position oscillating skid plate. 1 x MTE 90mm (3-1/2”) Drop-in King Pin supplied.
Hydraulic Supply	Hydraulic power source – truck. (See extras for power pack options)
Control Valves Select preferred motor mounting side Passengers side Drivers side	Main Controls mounted under deck at front Hydraulic Controls include: L/H Rear Wide – Widen/Narrow R/H Rear Wide – Widen/Narrow Front Wide – Widen/Narrow L/H Suspension – Raise/Lower R/H Suspension – Raise/Lower Ramps – Raise/Lower Gauges for load Indication L/H & R/H Suspension with lockout taps Air switch Controls for Front & Rear Widening Locks Axle Retraction to all axles with shut-off taps to each suspension cylinder
Lights / Beacon	LED lights to ADR 4198 LED Side Lights in combing x7 per side in combing rails 2 x LED Amber marker lights on front of pontoons Round Tail x4 & Indicator x2 Lights in Ramps Stop/Tail/Reverse/Indicator Combination 2394 lights in Bumper LED Rotating Beacon in Driver side ramp 1 x Number Plate Lamp Red Rectangle Reflectors in Bumper, one each side
Tyres	215 x 17.5″ 16ply
Wheels & Spares	24 x – 17.5 x 6” – 10 Stud, 225 PCD Steel Wheels 24 x – 215/75 x 17.5”, 16 Ply – Synergy Tyres Spare wheel carriers Horizontal mount at front of gooseneck (Spares not included).
Hub odometer	1 x Hub odometer 416RPK for 215/75 17.5 Tyres
Greasing	Manual Greasing system 8 points per suspension out to a remote manual block Manual Greasing to all other points
Mud Flaps	Mud flaps in front of & behind all Axles & Main controls
Power Source	Truck
Lighting	HELLA LED lights to ADR 4198 with 1 rotating light in ramp
Ramps	2700mm x 900mm Hydraulic Ramps
Chain Bins Toolboxes	1 x Chain bin mounted on each side of spine below decks 3 x Open chain bins on each side of trailer
Link Pins	150mm diameter front link pins – 100mm diameter near link pins
Signage	Folding Oversize signs folding over ramps Fixed Chevrons on Front of pontoons Stick-on 600×200 Chevron behind tail & indicator lights on Ramps 2 x Ramps Warning Stickers on each ramp (rear & outsides) Do Not Overtake Turning Vehicle Stickers on Ramps Crush Zone stickers where applicable Controls Warning Stickers by all control Valves & Taps Flag holders on front & back, bolt on Alloy front Pontoon Covers with hole for front step MTE Plaque fitted to both sides of neck
Landing Legs	Heavy Duty Pin Type
Deck Material	Western Australia heavy duty with two x wear straps on neck, 10mm thick deck
Paint	Sandblasted, etch primed and painted in two-pack to your fleet colours

OPTIONAL EXTRAS (APPROX)
Wheel & Tyres	Spare Tyre and Steel Wheel 17.5” (28kg steel wheel) Chrome-plated or Painted Steel Wheels (28kg) Alloy wheels (machined finish) 17.5” (13kg) Alloy wheels (polished finish) 17.5” (13kg) Alloy wheels (premium finish) 17.5” (13kg) Michelin Tyres trailer set (in Lieu of standard) Hankook or Bridgestone Tyres trailer set (in Lieu of standard) Spare Tyre Lift Crane, fixed pipe swivel mount with 12v winch at front of gooseneck (For lifting trailer tyres on & off flat stack carriers)
Skid-plate & Gooseneck	MTE 50mm (2”) Drop in Kingpin Sliding Skid Plate with Pneumatic locks (Locks in 100mm increments, switch located on drivers side of skid plate) Hydraulically Adjustable Compensating Gooseneck
Hydraulic Supply Select preferred motor mounting side Passengers side Drivers side	5.5 HP Diesel power pack, electric start with battery. Mounted on side of gooseneck inside lockable box. 5.5 HP Petrol power pack, pull start only. Mounted on side of gooseneck inside lockable box. 5.5 HP Petrol power pack, electric start with battery. Mounted on side of gooseneck inside lockable box.
Greasing	Centralised Automatic Greasing – to Brakes and Suspension – 48 Points (Suspension & Brakes) Centralised Automatic Greasing to all grease points except ramps. – 73 Points (Suspension, Brakes, Widening Cylinders, Wings, Locks, (Gooseneck if applicable, adds 4 Points)
Remote Control	10-12 Function Apollo Remote system for operating Suspension & Widening (& Gooseneck if applicable). Controls Include: L/H Rear Wide – OPEN/CLOSE R/H Rear Wide – OPEN/CLOSE Front Wide – OPEN/CLOSE L/H Suspension – RAISE/LOWER R/H Suspension – RAISE/LOWER Gooseneck – Up/Down (if applicable)
Deck options	Altered Deck Length Extendable – 3-Meter extension (Locks in 500mm increments) Extendable – 4-Meter extension (Locks in 500mm increments) Drop Bed option 125mm
Landing Legs	Hydraulic Landing Legs with Hold/Lower Valve Additional Hydraulic control at main control panel Landing Legs – RAISE/LOWER Cylinder on Spine to assist widening Additional Hydraulic control at main control panel Spine Cylinder – RAISE/LOWER
Ramps	Lay-Flats for Ramps Heavy Duty Single Ramps 3300mm x 1050mm Double Fold Ramps 3700mm x 900mm Double Fold Ramps 4400mm x 900mm Custom Ramps
Ship Locks	Ship-Lock pockets for 20’ Containers at 2.5m Wide. With 4x Double ended Ship Locks supplied.
Toolboxes/Chain Bins	Lockable Stainless Lids for chain bins on sides of trailer Note: lids will cover access to cross-member lashings 6 x Lockable Toolboxes (3 on each side) that Allow access for Cross-member lashings between boxes 2 x Small Lockable Toolboxes under Spare tyre Carriers on Gooseneck (one each side) LED Lights inside Toolboxes (wired into sidelight circuit)
Lights	2nd LED Rotating Beacon mounted in Passengers side Ramp Auxiliary Light Plugs x4 mounted at Front (behind landing legs) & at Rear (on ramps). 2 x Spotlights on rear wings facing rearward towards inside wheels
Power Pack	5.5 HP Diesel power pack, electric start with battery
Power Pack	5.5 HP Petrol power pack, pull start only
Power Pack	5.5 HP Petrol power pack, electric start with battery
Gauges	Gauges for load indication
Storage	6x Lockable toolboxes (3 on each side)
Water Tank	Stainless Steel water tank and Tap. Mounted to gooseneck Plastic Water Tank Fitted. Mounted to gooseneck
Air Reel	Retractable Air Hose Reel with 15m of ½” Hose mounted under deck in front of suspensions. Select preferred Reel mounting side Passengers side OR Drivers side
Deck Surface	Anti-slip grit to decks (can be done in any colour). Rubber belting, profile cut to fit deck Supplied Bolted to deck
Odometer	Hub odometer
Deck	Longer deck – 11,900mm Deck Length
Deck	Longer deck – 12,550mm Deck Length
Extendable	Extendable – 3-Meter extension with 12,540mm Overall deck Length. (Extends in 500mm increments)
Extendable	Extendable – 4-Meter extension with 13,550mm Overall deck Length. (Extends in 500m increments)
Clip On	Clip-on 4th axle
Drop Bed	125mm
Widening	Cylinder on spine to assist widening
Paint	Two Tone paint

4R8 Linkwing Trailer

Four Rows of Eight Linkwing

4R8 Linkwing Trailer

The 4 Rows of 8 Linkwing is one of our larger trailers. With an 110,000kg GVW, hydraulic widening and hydraulic suspension. It has the added bonus of being able to be optioned with a drop bed. The Linkwing can raise, lower, widen its decks and can be optioned with an internal hydraulic gooseneck. The Linkwing is fully customisable to meet your individual transport needs.

STANDARD SPECIFICATIONS (APPROX)
Dimensions & Widening	Deck Length (OA) – 13,807mm Deck Length (Behind G/N) – 12,475mm Deck Ride Height – 950mm Deck Lowered Height – 820mm Deck Raised Height – 1060mm Closed Width 2500mm – Open Width 4270mm Opening widths – 2500mm, 2700mm, 3100mm, 3500mm, 3750mm, 4000mm, and 4270mm 150mm diameter front link pins – 100mm diameter rear link pins Widening by four hydraulic rams NOTE: Dimensions in this document are indicative only & may not be accurate to the latest model, an updated layout drawing showing true measurements should be supplied & signed off by customer
Lashings	Figure ‘8’ Lashings to top of decks Lashings on each cross member 3x 16mm Chain Lugs on each side of the neck and 1x behind each Landing Leg Small recessed lashings for dunnage blocks at the front of both decks (x4 each deck) Twitch holders on both sides of the gooseneck
Axles	Axle spacing – 1220mm – 2440mm – 1220mm. MTE Axles 17.5”, Ten Stud, 225PCD Axles with Outboard Drums & 12-1/4” x 7-1/2″ Brakes Axle retraction to all axles to facilitate maintenance
Suspension	MTE Hydraulic Ball Type Suspension with low maintenance quick-change rams Axle Retraction with lock-out taps all axles to facilitate maintenance 2x Retraction safety keepers supplied
Brakes	Pacific, Non-ABS Brakes. 12-1/4″ x 5-1/2″ brakes on outboard drums
Capacity (GVW)	GVW – 110,000kg Tare weight from 16,500kg (approx.)
Gooseneck Rub Plate King Pin	Fixed Height Gooseneck Skid plate Height – 1300mm at 920mm Deck Ride Height (State Skid Plate height if different from above) Two Position Oscillating skid plate 1x MTE 90mm (3-1/2”) Drop-in King Pin supplied
Hydraulic Supply	Hydraulic power source – truck. (See extras for power pack options)
Control Valves Select preferred motor mounting side Passengers side Drivers side	Main Controls mounted under the deck at the front Hydraulic Controls include: L/H Rear Wide – Widen/Narrow R/H Rear Wide – Widen/Narrow Front Wide – Widen/Narrow L/H Suspension – Raise/Lower R/H Suspension – Raise/Lower Ramps – Raise/Lower Gauges for load Indication L/H & R/H Suspension with lockout taps Air switch Controls for Front & Rear Widening Locks Axle Retraction to all axles with shut-off taps to each suspension cylinder
Tyres	215 x 17.5″ 16ply
Wheels & Spares	32x – 17.5 x 6” – 10 Stud, 225 PCD Steel Wheels 32x – 215/75 x 17.5”, 16 Ply – Synergy Tyres Spare wheel carriers Horizontal mount at front of gooseneck (Spares not included)
Hub odometer	1 x Hub odometer 416RPK for 215/75 17.5 Tyres
Greasing	Manual Greasing system 8 points per suspension out to a remote manual block Manual Greasing to all other points
Mud Flaps	Mud flaps in front of & behind all Axles & Main controls
Power Source	Truck
Chain Bins Toolboxes	1 x Chain bin mounted on each side of spine below decks. 4 x Open chain bins on each side of trailer.
Lights	LED lights to ADR 4198 LED Side Lights in combing x8 per side in combing rails Amber round reflectors next to each side light LED Indicators Half way down sides 2 x LED Amber marker lights on front of pontoons Round Tail x4 & Indicator x2 Lights in Ramps Stop/Tail/Reverse/Indicator Combination 2394 lights in Bumper LED Rotating Beacon in Driver side ramp. 1 x Number Plate Lamp. Red Rectangle Reflectors in Bumper, one each side
Signage	Folding Oversize signs folding over ramps Fixed Chevrons on Front of pontoons Stick-on 600×200 Chevron behind tail & indicator lights on Ramps 2x Ramps Warning Stickers on each ramp (rear & outsides) Do Not Overtake Turning Vehicle Stickers on Ramps Crush Zone stickers where applicable Controls Warning Stickers by all control Valves & Taps Flag holders on front & back, bolt on Alloy front Pontoon Covers with hole for front step MTE Plaque fitted to both sides of neck
Ramps	2700mm x 900mm Hydraulic Ramps
Link Pins	150mm diameter front link pins – 100mm diameter near link pins
Signage	‘Do not overtake’ and ‘OVERSIZE’
Landing Legs	Heavy duty Pin Type
Deck Material	High Tensile 690mpa steel construction with a fully enclosed 10mm thick deck & two wear straps on the neck
Paint	Sandblasted, etch primed and painted in two-pack to your fleet colours

OPTIONAL EXTRAS (APPROX)
Wheel & Tyres	Spare Tyre and Steel Wheel 17.5” (28kg steel wheel) Chrome Plated or Painted Steel Wheels (28kg) Alloy wheels (machined finish) 17.5” (13kg) Alloy wheels (polished finish) 17.5” (13kg) Alloy wheels (premium finish) 17.5” (13kg) Michelin Tyres trailer set. (in Lieu of standard) Hankook or Bridgestone Tyres trailer set. (in Lieu of standard) Spare Tyre Lift Crane, fixed pipe swivel mount with 12v winch at front of gooseneck (For lifting trailer tyres on & off flat stack carriers)
Skid-plate & Gooseneck	MTE 50mm (2”) Drop in Kingpin Sliding Skid Plate with Pneumatic locks (Locks in 100mm increments, switch located on drivers side of skid plate) Hydraulically Adjustable Compensating Gooseneck Additional Hydraulic control at main control panel Gooseneck – RAISE/LOWER
Hydraulic Supply Select preferred motor mounting side Passengers side Drivers side	5.5 HP Diesel power pack, electric start with battery Mounted on side of gooseneck inside lockable box 5.5 HP Petrol power pack, pull start only Mounted on side of gooseneck inside lockable box 5.5 HP Petrol power pack, electric start with battery Mounted on side of gooseneck inside lockable box
Greasing	Centralised Automatic Greasing – to Brakes and Suspension – 64 Points (Suspension & Brakes) Centralised Automatic Greasing to all grease points except Ramps. – 98 Points (Suspension, Brakes, Widening Cylinders, Wings, Locks, (Gooseneck if applicable, adds 4 Points)
Ramps	Lay-Flats for Ramps. Heavy Duty Single Ramps 3300mm x 1050mm Double Fold Ramps 3700mm x 900mm Double Fold Ramps 4400mm x 900mm Custom Ramps
Remote Control	10-12 Function Apollo Remote system for operating Suspension & Widening (& Gooseneck if applicable, adds 2 functions) Controls Include: L/H Rear Wide – OPEN/CLOSE R/H Rear Wide – OPEN/CLOSE Front Wide – OPEN/CLOSE L/H Suspension – RAISE/LOWER R/H Suspension – RAISE/LOWER Gooseneck – Up/Down (if applicable)
Deck options	Custom Deck Length. Extendable – 3-Meter extension. (Extends in 500mm increments). Extendable – 4-Meter extension. (Locks in 500mm increments). Drop Bed option 125mm. 2700mm Wide Trailer (Widens to 4600mm)
Steering Axle	Castor Steering on rear two axles (Trailer closed width 3000mm)
Landing Legs	Hydraulic Landing Legs with Hold/Lower Valve Additional Hydraulic control at main control panel Landing Legs – RAISE/LOWER Cylinder on Spine to assist widening Additional Hydraulic control at main control panel Spine Cylinder – RAISE/LOWER
Ship Locks	Ship-lock pockets for 20′ and 40′ containers & 4 x double-ended ship locks
Power Pack	5.5 HP Diesel power pack, electric start with battery
Power Pack	5.5 HP Petrol power pack, pull start only
Power Pack	5.5 HP Petrol power pack, electric start with battery
Toolboxes / Chain Bins	Lockable Stainless Lids for chain bins on sides of trailer Note: lids will cover access to cross-member lashings 6x Lockable Toolboxes (3 on each side) that Allow access for Cross-member lashings between boxes 2x Small Lockable Toolboxes under Spare tyre Carriers on Gooseneck (one each side) LED Lights inside Toolboxes (wired into sidelight circuit)
Lights	2nd LED Rotating Beacon mounted in Passengers side Ramp Auxiliary Light Plugs x4 mounted at Front (behind landing legs) & at Rear (on ramps) 2x Spotlights on rear wings facing rearward towards inside wheels
Gauges	Gauges for load indication
Storage	8x Lockable toolboxes (4 on each side)
Water Tank Select preferred Tank mounting side Passengers side Drivers side	Stainless Steel water tank and Tap. Mounted to gooseneck. Plastic Water Tank Fitted Mounted to gooseneck.
Air Reel	Retractable Air Hose Reel with 15m of ½” Hose mounted under deck in front of suspensions. Select preferred Reel mounting side. Passengers side OR Drivers side
Odometer	Hub odometer
Deck Surface	Anti-slip grit to decks (can be done in any colour). Rubber belting 13mm with 3mm steel, profile cut to fit deck. Supplied Bolted to deck.
Deck	Longer deck – 11,900mm Deck Length
Deck	Longer deck – 12,550mm Deck Length
Extendable	Extendable – 3-Meter extension with 12,540mm Overall deck Length. (Extends in 500mm increments)
Extendable	Extendable – 4-Meter extension with 13,550mm Overall deck Length. (Extends in 500m increments)
Clip On	Clip-on 4th axle
Drop Bed	125mm
Widening	Cylinder on spine to assist widening
Paint	Two Tone paint

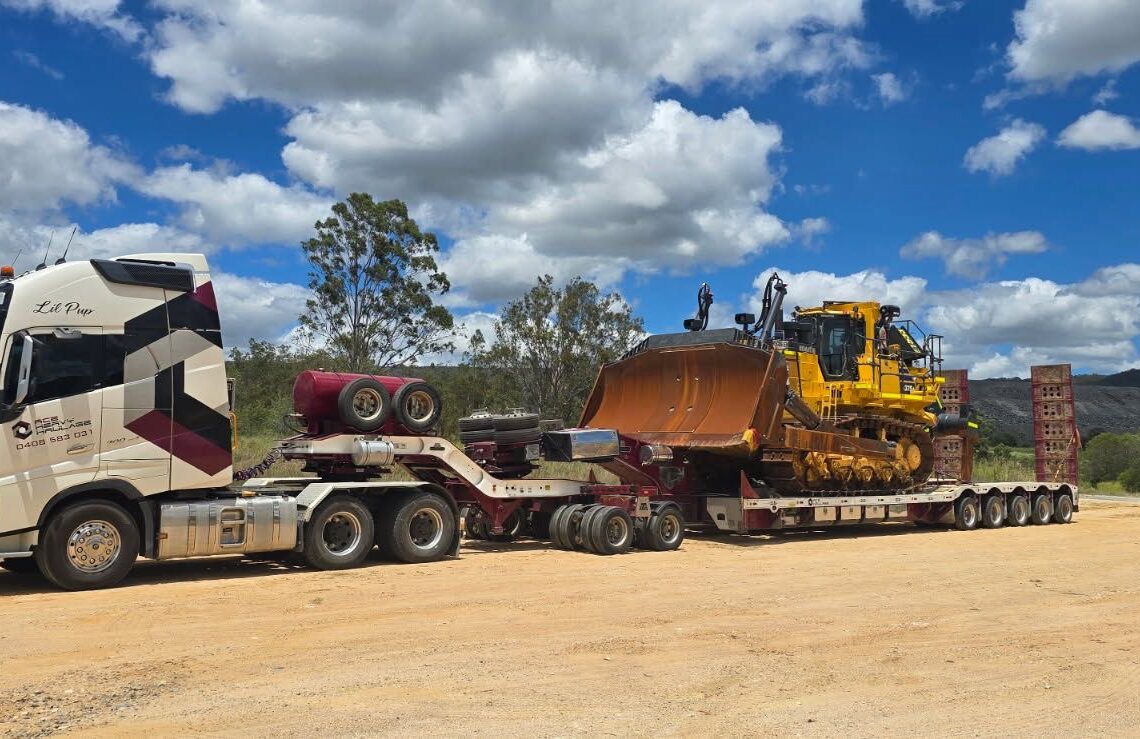

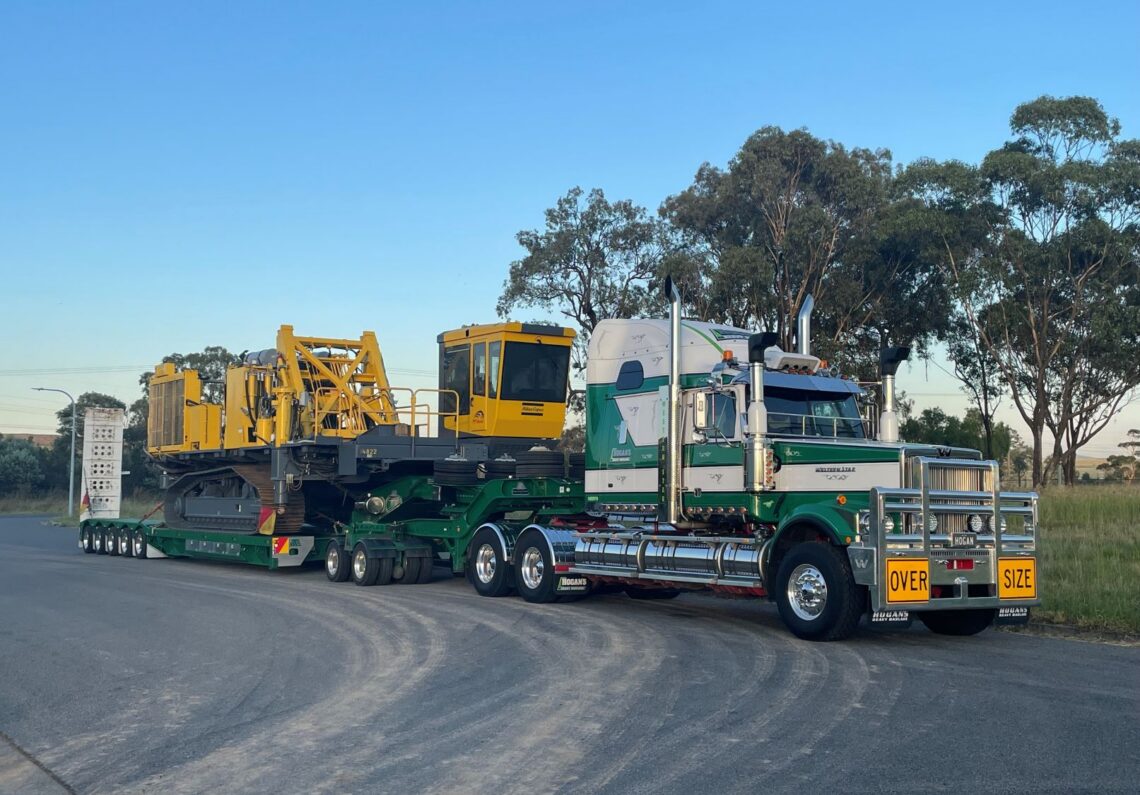

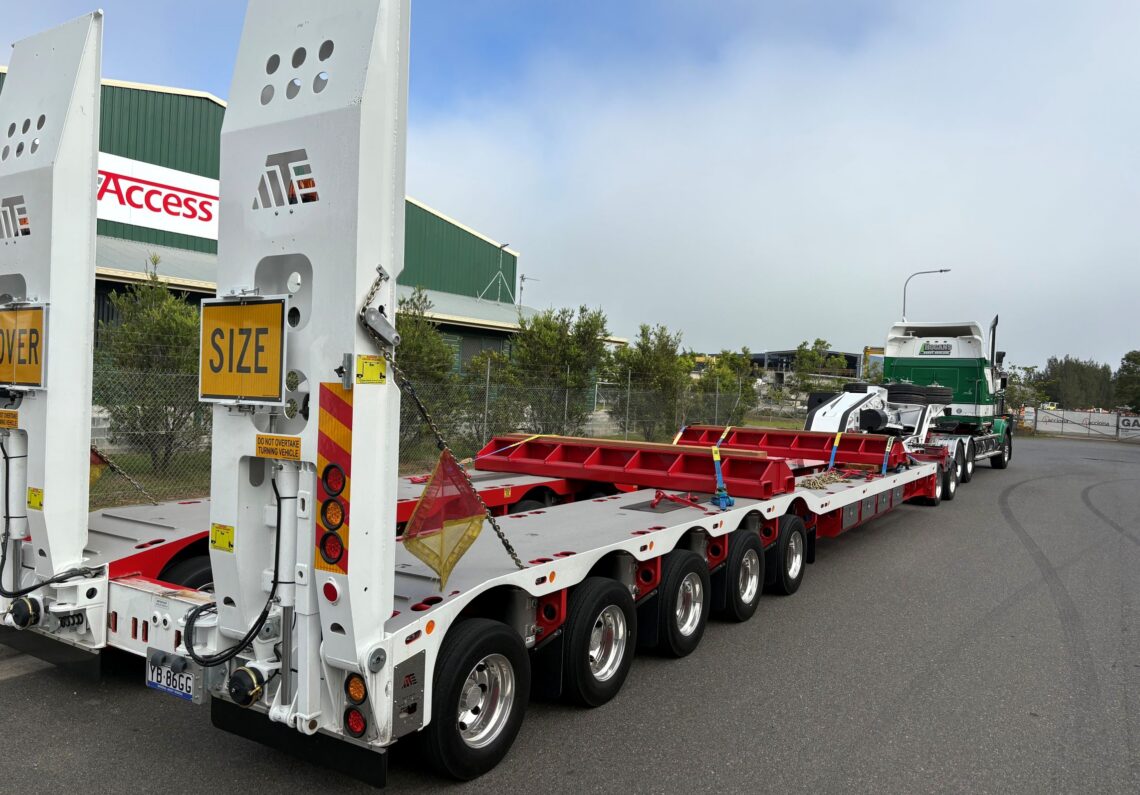

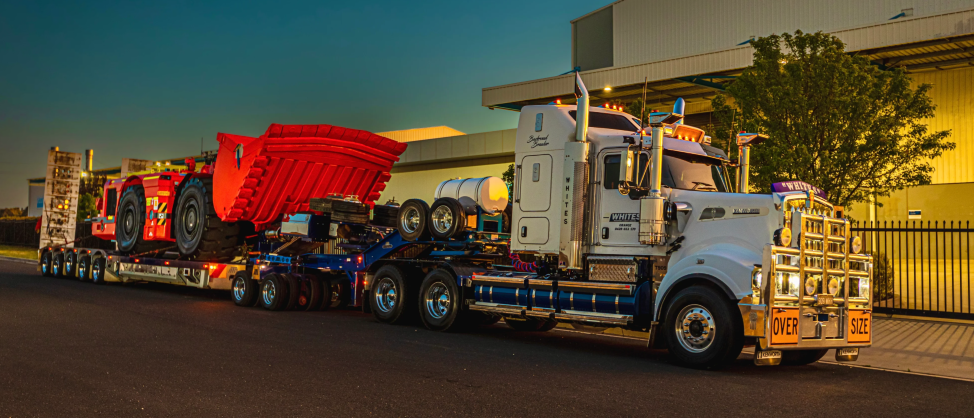

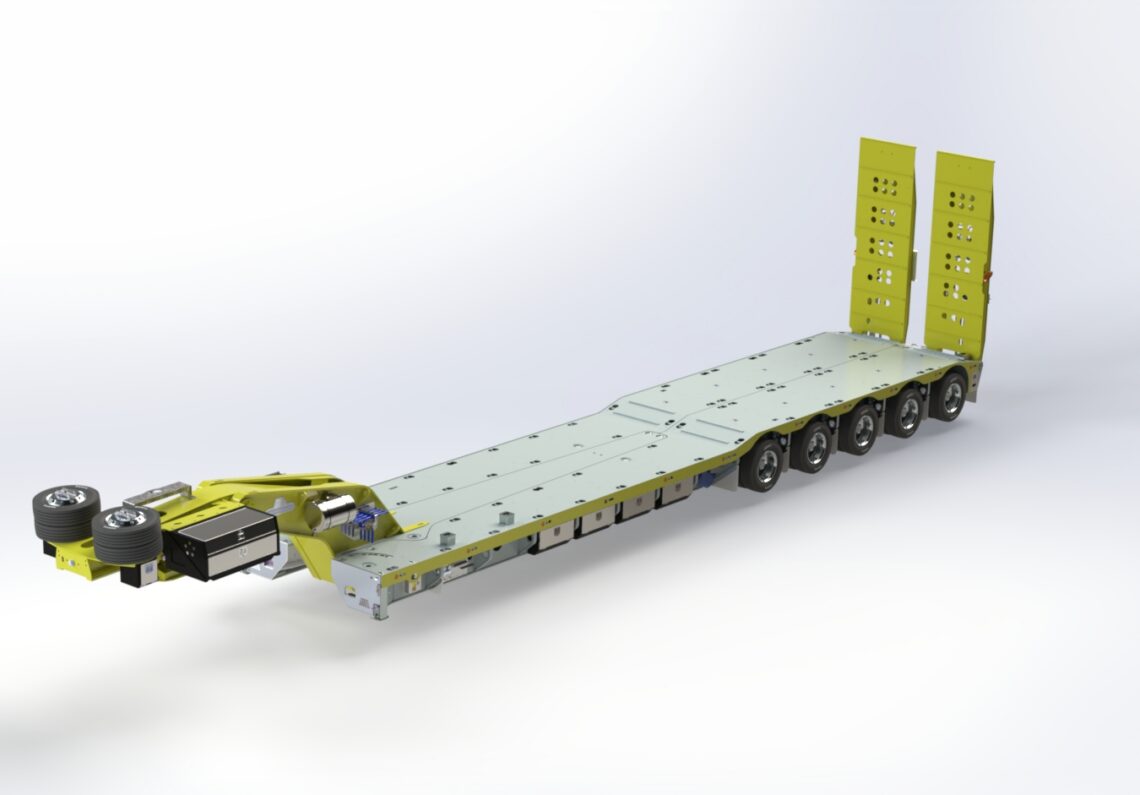

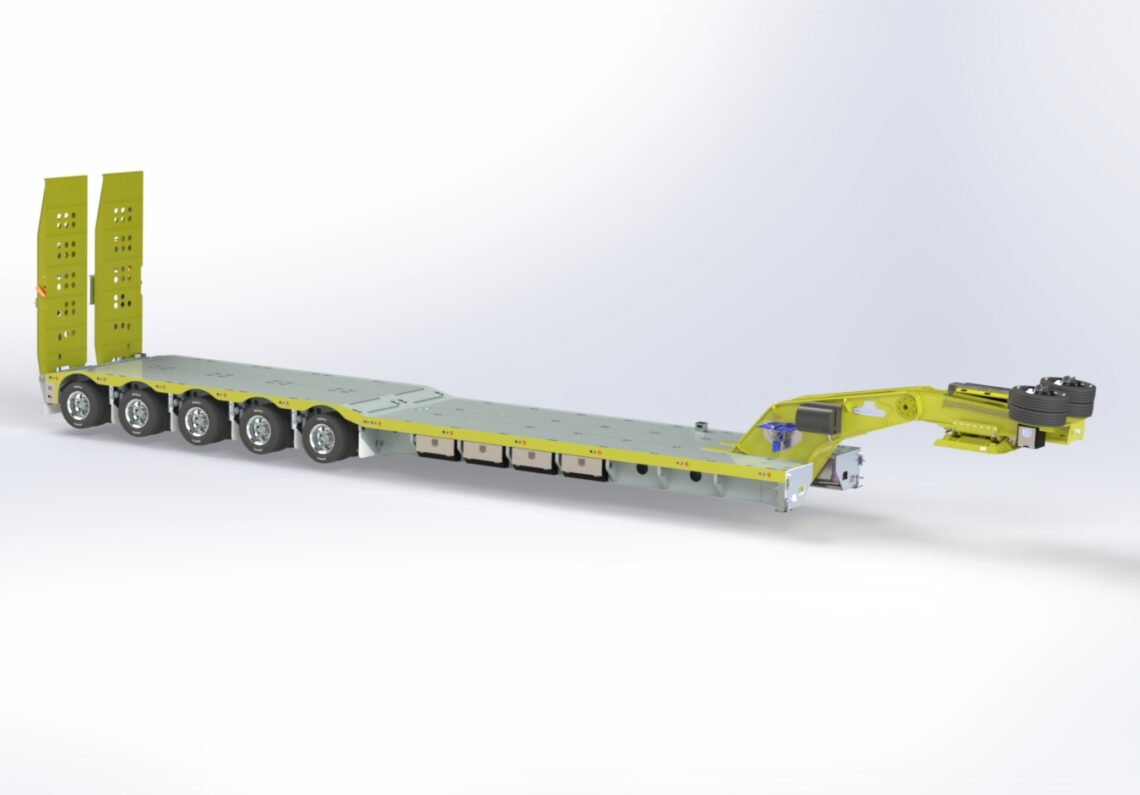

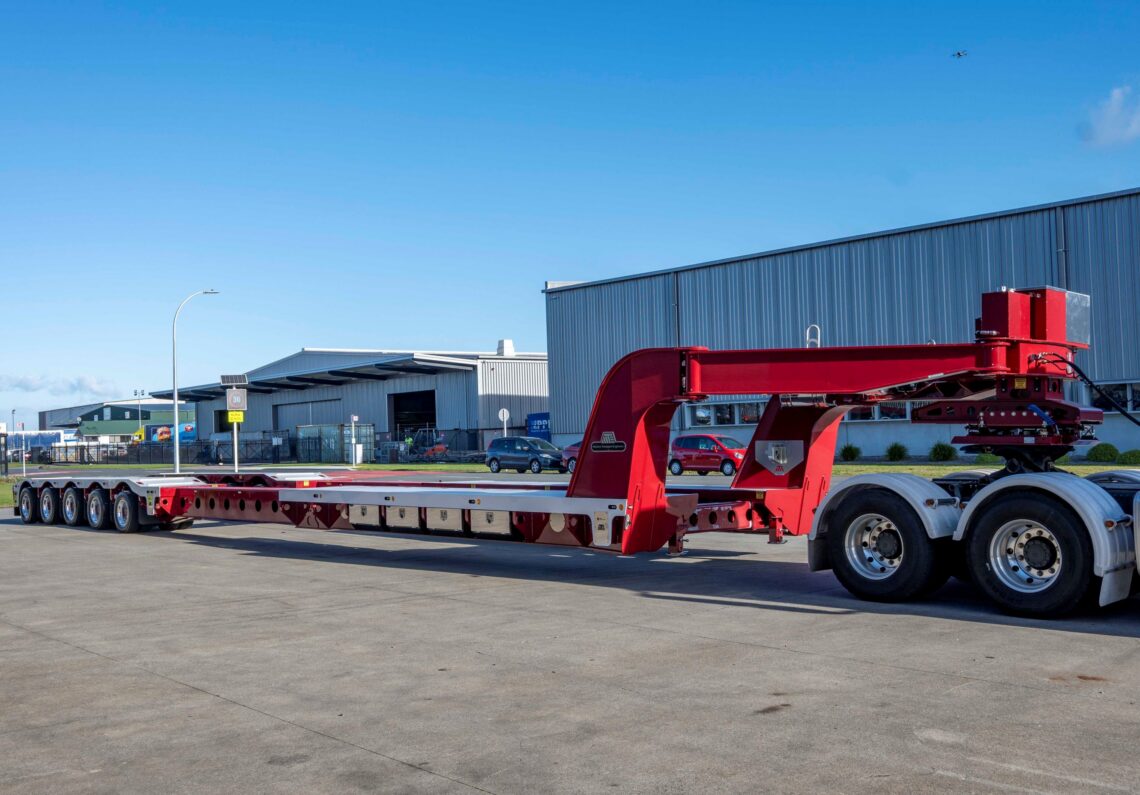

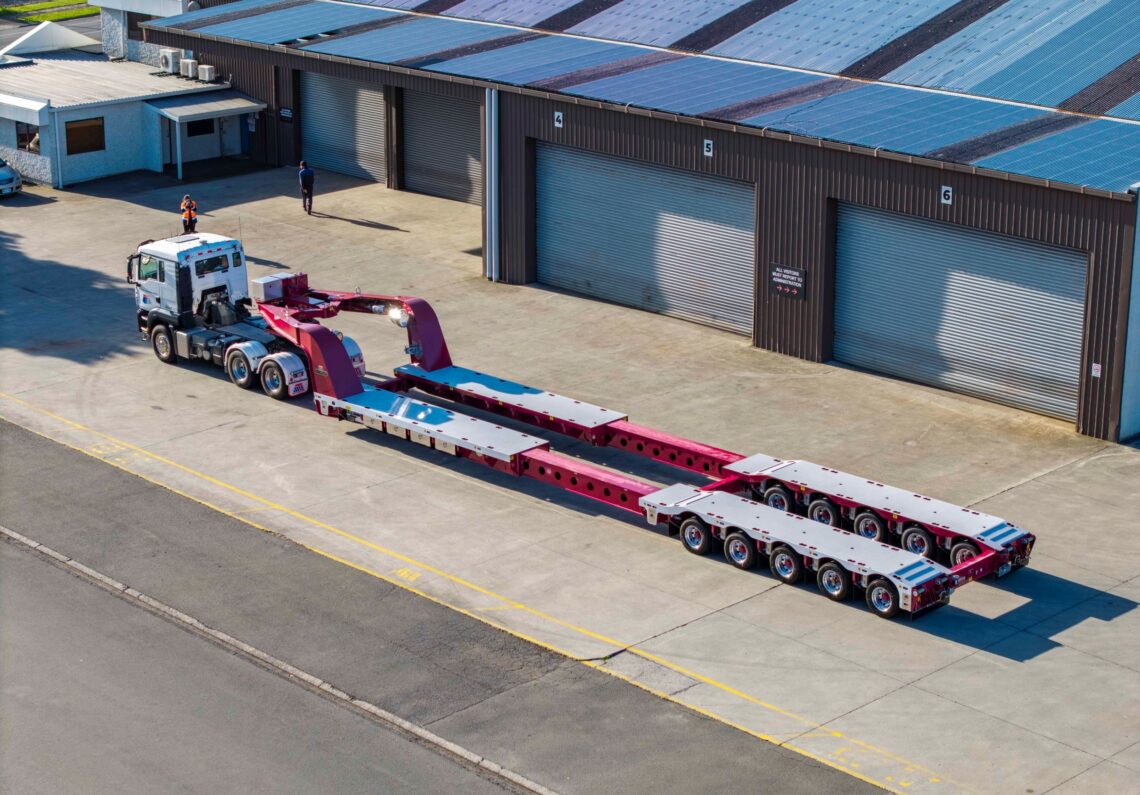

5R8 Linkwing Trailer

Five Rows of Eight Linkwing

5R8 Linkwing Trailer

The 5 Rows of 8 Linkwing is one of our larger trailers. With an 110,000kg GVW, hydraulic widening and hydraulic suspension. It has the added bonus of being able to be optioned with a drop bed. The Linkwing can raise, lower, widen its decks and can be optioned with an internal hydraulic gooseneck. The Linkwing is fully customisable to meet your individual transport needs.

STANDARD SPECIFICATIONS (APPROX)
Dimensions & Widening	Deck Length (OA) – 12.8m Deck Length (Behind G/N) – 11.5m Deck Ride Height – 950mm Deck Lowered Height – 820mm Deck Raised Height – 1060mm Closed Width 2500mm – Open Width 4270mm Locking Configurations – 2.5m, 2.7m, 3.1m, 3.5m, 3.75m, 4.0m, and 4.27m Widening by four hydraulic rams NOTE: Dimensions in this document are indicative only & may not be accurate to the latest model, an updated layout drawing showing true measurements should be supplied & signed off by the customer
Deck Length (Behind G/N)	12,475mm
Deck Height	900mm
Deck Type	High tensile 690MPa steel construction with a fully enclosed 10mm thick deck & two wear straps on the neck. Grip Tread Tape up neck on Straps
Opening Widths	2500mm, 2700mm, 3100mm, 3500mm, 3750mm, 4000mm, and 4270mm
Lashings	Figure ‘8’ Lashings to the top of decks Load-ring Lashings on cross members inside & out 3x 16mm Chain Lugs on each side of the neck and 1x behind each Landing Leg 8x Recessed 6000kg Tiger hooks lashings for dunnage blocks at the front of both decks, (x4 each deck). Twitch holders on both sides of the gooseneck. Two Sets of Pusher Bar Lugs on the rear of the trailer (One each side) Ship-Lock pockets for 1x 20’ & 1x 40’ Containers – At -2.5m- OR -2.7m- width (Please state) – Note: Minimum Deck Length is 13.5m for 40’ Container – 4 x Double-ended Ship Locks supplied
Axles	Axle spacing – 1220mm–1220mm–1220mm–1220mm. MTE Axles 17.5”, Ten Stud, 225PCD Axles with Outboard Drums & 12-1/4” x 7-1/2″ Brakes
Axle Retraction	Axle retraction to all axles to facilitate maintenance
Suspension	MTE Hydraulic Ball Type Suspension with low maintenance, quick-change rams Axle Retraction with lock-out taps all axles to facilitate maintenance. 2 x Retraction safety keepers supplied.
Brakes	Pacific, Non-ABS Brakes. 12-1/4″ x 5-1/2″ brakes on outboard drums
Power Source	Truck
Capacity (GVW)	GVW – 130,000kg
Tyres	215 x 17.5″ 16ply
Wheels & Spares	42 x – 17.5 x 6” – 10 Stud, 225 PCD Steel Wheels 42 x – 215/75 x 17.5”, 16 Ply – Synergy Tyres Spare wheel carriers, Horizontal mount at the front of the gooseneck (2 x Spares included)
Hub odometer	1 x Hub odometer 416RPK for 215/75 17.5 Tyres
Greasing	Manual Greasing system 8 points per suspension out to a remote manual block Manual Greasing to all other points
Mud Flaps	Mud flaps in front of & behind all Axles & Main controls
Chain Bins Toolboxes	2 x Open chain bins/Dunnage trays, mounted one on each side of the spine between decks 8 x Lockable chain bins/toolboxes, mounted 4 per side under main deck
Lights	LED lights to ADR 4198 20x Side Lights in combing rails (10x per side) Amber round reflectors next to each side light LED Indicators Halfway down sides 2 x White LED marker lights on front of pontoons 6 x Round Tail Lights. (2x per ramp & 1x each side of bumper in Stainless bracket) 4 x Round Amber Indicator Lights (1 x in each ramp & 1x each side of bumper in Stainless bracket) 1 x LED Rotating Beacon in Driver side ramp 1 x Number Plate Lamp 1 x LED light shining onto the control panel Red Rectangle Reflectors in Bumper, one on each side 4 x Auxiliary two-pin 4918 light plugs (Behind each landing leg & on each ramp) LED Lights inside Toolboxes (wired into sidelight circuit)
Skid Plate	Sliding & Oscillating Skid Plate with Pneumatic locks. – (Locks in 100mm increments). – 1x Pneumatic switch on Drivers side of the Rubplate for Rubplate locks. Skid plate Height – 1320mm at 950mm Deck Ride Height. (State Skid Plate height if different from above).
Gooseneck	Hydraulically Adjustable Compensating Gooseneck
King Pin	1x MTE 90mm (3-1/2”) & 1x 50mm (2”) Drop-in King Pins supplied
Ramps	Heavy Duty Single Ramps 3300mm x 1050mm. C-Ramp014 Lay-Flat Ramp Stays for Ramps – Includes 2x Light Boards that attach to each ramp for when Ramps are in Lay Flat position with ‘Do Not Overtake’, Hazard Panel Stickers, Combination Tail Lights & Rotating Beacons in each board
Landing Legs	Heavy Duty Pin Type
Hydraulic Supply	Hydraulic power source – 5.5 HP Diesel power pack, electric start with battery Mounted on Passengers side of the gooseneck inside a lockable box
Control Valves	Main Controls mounted under deck at front on Passengers side Hydraulic Controls include: L/H Rear Wide – Widen/Narrow R/H Rear Wide – Widen/Narrow Front Wide – Widen/Narrow L/H Suspension – Raise/Lower R/H Suspension – Raise/Lower Additional Hydraulic control at the main control panel Gooseneck – RAISE/LOWER Ramps – Raise/Lower Gauges for load Indication L/H & R/H Suspension with lockout taps Axle Retraction to all axles with shut-off taps to each suspension cylinder (x10) 2x Air lock switches for rear widening box locks (R/H Rear Lock & L/H Rear Lock) 1x Air Lock switch for Front Widening Locks
Link Pins	150mm diameter front link pins – 100mm diameter near link pins
Signage	Folding Oversize signs folding over ramps. Stick-on 600×200 Chevron behind tail & indicator lights on Ramps. 2 x Ramps Warning Stickers on each ramp (rear & outsides). Do Not Overtake Turning Vehicle Stickers on Ramps. Crush Zone stickers where applicable. Controls Warning Stickers on all control Valves & Taps. Flag holders on front & back, bolt on. Alloy front Pontoon Covers with a hole for the front step. MTE Plaque fitted to both sides of neck
Landing Legs	Heavy duty
Deck Material	High tensile 690MPa steel construction with a fully enclosed 10mm thick deck & two wear straps on the neck. Grip Tread Tape up neck on Straps
Paint	Sandblasted, etch primed and painted in two-pack to your fleet colours

OPTIONAL EXTRAS (APPROX)
Wheel & Tyres	Spare Tyre and Steel Wheel 17.5” (28kg steel wheel) Chrome-plated or Painted Steel Wheels (28kg) Alloy wheels (machined finish) 17.5” (13kg) Alloy wheels (polished finish) 17.5” (13kg) Alloy wheels (premium finish) 17.5” (13kg) Michelin Tyres trailer set (in Lieu of standard) Hankook, Bridgestone or Pirelli Tyres trailer set (in Lieu of standard) Truck Spare mounts only on the gooseneck Spare Tyre Lift Crane, fixed pipe swivel mount with 12v winch at the front of the gooseneck (For lifting trailer tyres on & off flat stack carriers)
Tyre Inflation System	Tyre inflation system fitted to axles for each tyre (5R8)
Gooseneck	Old Style External Hydraulically Adjustable Gooseneck. Uses two externally mounted hydraulic lift cylinders
Ramps	Folding Aluminium Light Brackets on each Ramp for when leaning Ramps Back. (Includes 2 x Combination Tail Lights fitted) Pneumatic chain tensioners on ramp chains, switches at the rear on each side Double Fold Ramps 3700mm x 900mm Double Fold Ramps 4400mm x 900mm Custom Ramps
Winches	45,000lb Garwood Aluminium winch, hydraulic driven with 27m of 19mm Wire Rope with Thimble at end Controlled with a Hydraulic Lever on Trailer & a 2 Function Remote control 30,000lb Hydraulic Winch fitted with 27m of 16mm Wire Rope with Thimble at end Controlled with a Hydraulic Lever on Trailer & a 2 Function Remote control 20,000lb Hydraulic Winch fitted with 27m of 14mm Wire Rope with Thimble at end Controlled with a Hydraulic Lever on Trailer & a 2 Function Remote control
Toolboxes / Chain Bins	2x Small 300x300mm Lockable Toolboxes mounted under Spare tyre Carriers on Gooseneck (one each side) 1200x400x350mm Lockable Toolbox mounted on the side of the Gooseneck 1770x460x630mm Lockable Toolbox Mounted on the side of the neck (Same as motor mount box) Wheel Chock Holders mounted on both sides of neck
Lights	2nd LED Rotating Beacon mounted in Passengers side Ramp Auxiliary Light Plugs x4 mounted at Front (behind landing legs) & at Rear (on ramps) 2x Spotlights on rear wings facing rearward towards the inside wheels
Greasing	Centralised Automatic Greasing to Brakes and Suspension – 50 Points (Suspension & S-Cams) – Manual greasing of accessible blocks for Slack Adjusters – All other points manual greasing to nipples Centralised Automatic Greasing to Suspension, Brakes, Widening Cylinders Wings, Locks – Suspensions & S-Cams – Front Widening Cylinders – Widening Wings – Front Locks – Gooseneck – Manual greasing of accessible blocks for Slack Adjusters – All other points manual greasing to nipples High Pressure Lines & fittings fitted to centralised greasing System
Remote Control	12 Function Apollo Remote system for operating Suspension, Widening & Gooseneck Controls Include: L/H Rear Wide – OPEN/CLOSE R/H Rear Wide – OPEN/CLOSE Front Wide – OPEN/CLOSE L/H Suspension – RAISE/LOWER R/H Suspension – RAISE/LOWER Gooseneck – UP/DOWN
Deck options	Longer Deck Length Option – 13.2m Overall deck length (11.9m behind neck to ramps) Longer Deck Length Option – 13.8m Overall deck length (12.5m behind neck to ramps) Longer Deck Length Option – 14.2m Overall deck length (12.9m behind neck to ramps) Custom Deck Length. Extendable – 3-Meter extension (Extends in 500mm increments) Please ask for available deck lengths Extendable – 4-Meter extension (Locks in 500mm increments) Please ask for available deck lengths Extendable – 4.5-Meter extension (Locks in 500mm increments) Please ask for available deck lengths Drop Bed option 125mm Standard Overall deck Length – 13.2m 2700mm Wide Trailer (Widens to 4600mm) Locking widths – 2700mm, 3100mm, 3500mm, 3750mm, 4000mm, 4300mm & 4600mm
Steering Axle	Castor Steering on the rear two axles (Trailer closed width 3000mm)
Landing Legs	Hydraulic Landing Legs with Hold/Lower Valve Additional Hydraulic control at the main control panel Landing Legs – RAISE/LOWER Cylinder on Spine to assist widening Additional Hydraulic control at the main control panel Spine Cylinder – RAISE/LOWER
Pusher Bar	3m Pusher Bar Supplied with mounting on the side of the spine below deck (Above spine boxes)
Ship Locks	Ship-lock pockets for 20′ and 40′ containers & 4 x double-ended ship locks
Power Pack	5.5 HP Diesel power pack, electric start with battery
Power Pack	5.5 HP Petrol power pack, pull start only
Power Pack	5.5 HP Petrol power pack, electric start with battery
Gauges	Gauges for load indication
Storage	8x Lockable toolboxes (4 on each side)
Water Tank Select preferred Tank mounting side Passengers side Drivers side	Stainless Steel water tank and Tap Mounted to gooseneck. Choose Side Plastic Water Tank Fitted Mounted to gooseneck. Choose Side
Rub Plate	Sliding rub plate
Gooseneck	Hydraulically adjustable gooseneck External
Gooseneck	Hydraulically adjustable gooseneck Internal
Turntable	Sliding turntable
Kingpin	MTE 50mm drop-in Kingpin
Odometer	Hub odometer
Extendable	Extendable – 3-Meter extension with 13,850mm overall deck Length closed. (Extends in 500mm increments)
Extendable	Extendable – 4-Meter extension with 14,850mm overall deck Length closed. (Extends in 500m increments)
Drop Bed	125mm drop bed option ( 13,190mm overall deck length)
Air reel	Retractable Air Hose Reel with 15m of ½” Hose mounted under deck in front of suspensions Select preferred Reel mounting side. Passenger’s side OR Drivers side
Deck Surface	Anti-slip grit to decks (can be done in any colour) Anti-slip Mipa Deck Liner on deck Rubber belting 13mm with 3mm steel, profile cut to fit the deck Supplied bolted to deck
Paint	Two pack Premium finish paint

Modern Transport – Linkwing Trailers

Features

Light-Weight 3R8 Linkwing Trailer

Light-Weight 3R8 Linkwing Trailer

3R8 Linkwing Trailer

3R8 Linkwing Trailer

4R8 Linkwing Trailer

4R8 Linkwing Trailer

5R8 Linkwing Trailer

5R8 Linkwing Trailer

Modern Transport – Linkwing Trailers

Features

Available Models

Light-Weight 3R8 Linkwing Trailer

Light-Weight 3R8 Linkwing Trailer

3R8 Linkwing Trailer

3R8 Linkwing Trailer

4R8 Linkwing Trailer

4R8 Linkwing Trailer

5R8 Linkwing Trailer

5R8 Linkwing Trailer

Get a Custom Quote

Or call us today on 07 3393 5100

Quick Links

Contact Us
