Modern Transport – Rows of 4 Trailers

Built for serious heavy machinery transport, the Rows of 4 Widener provides the strength, stability and flexibility required for large and oversized loads. Its hydraulically widening deck and proven heavy-duty construction make it a versatile solution for operators regularly transporting excavators, dozers, loaders and other heavy equipment.
‍
‍Built for oversized machinery, A strong, stable platform designed for transporting excavators, dozers, loaders and other heavy equipment.
‍
‍Width when you need it, The hydraulically widening deck provides a stable platform for wider machinery while returning to standard road width for everyday travel.
‍
‍Hydraulic suspension, Provides excellent load sharing and allows the trailer height to be adjusted to assist with loading, ground clearance and overall transport height.

‍Configured for the job, A wide range of ramp, storage, decking, container and load-restraint options allow the trailer to be tailored to suit your operation.

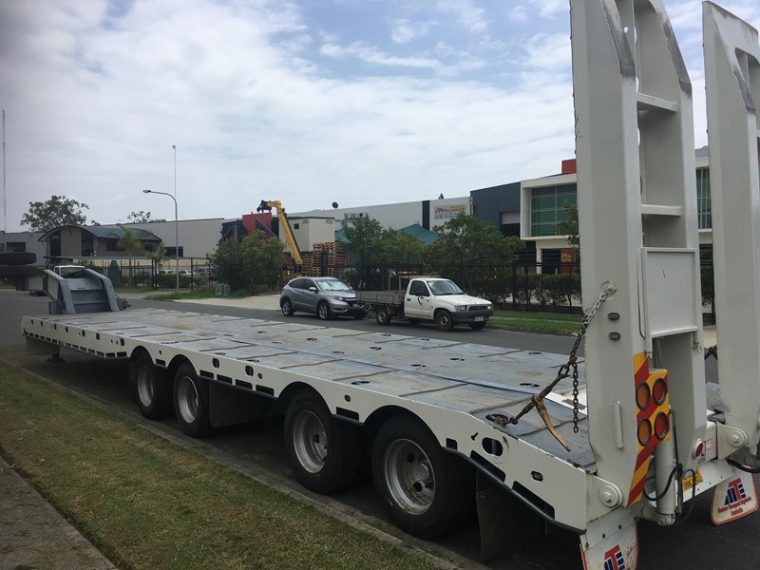

DECK WIDENER truck trailer

Available Models

24 models are available in this range

3A Simple Trailer

3 Axle Simple Trailer

3A Simple Trailer

The simple trailer  is our smallest trailer available. They last forever and are extremely low maintenance. Perfect for transporting small excavators or for farm work. Customisable options are also available.

STANDARD SPECIFICATIONS (APPROX)
Width – 2490mm
Deck Length – 7500mm
axles – 15” Ten stud
Suspension – 3 leaf spring
Brakes – 12-1/4 x 7-1/2” with outboard drums
Brakes – ABS complies with new brake rule
Tyres – 215 x 17.5
Wheels – Steel wheel
Lighting – LED multi voltage
Drawbar – 5,000kg
Tow-eye – Pintle hook or 40mm tow-eye
Ramps – 1600 x 860 Hydraulic ramps
Toolboxes – In drawbar
Deck Material – 6mm Cheka plate deck



OPTIONAL EXTRAS
Wheels – Aluminium wheels machine finish (12.8kg wheel)
Wheels – Aluminium wheels polished finish (12.8kg wheel)
Tyres – Specific branded tyres (please state)
Tyres – Extra spare tyre and steel wheel
Hydraulics – Hydraulic hand pump

3R4 Full Widener Trailer

3 Rows of 4 Full Widener

3R4 Full Widener Trailer

The 3 Rows of 4 Full Widener is a strong and robust trailer designed for the transport of heavy plant and machinery. Top deck or non-top deck options available, comes equipped with hydraulic widening and hydraulic suspension. Various forward lengths and axle spacing’s are available.

STANDARD SPECIFICATIONS (APPROX)
Deck Height – 880mm
Widening – Closed 2500mm – Open 3600mm
Forward Length – 9500mm
Axles – MTE 17.5” Ten stud axles
Axle Spacing – 1830mm
Suspension – MTE Hydraulic suspension 10,000kg capacity
Brakes – 12-1/4” x 7-1/4” brakes with outboard drums
Brakes – Air mechanical – quick acting Westinghouse circuit to ADR 38 requirements with type 30/30 boosters
Tyres – 235 x 17.5 x 16 ply
Wheels – Steel wheels
Lighting – LED Multi volt
Electrical – 6mm moulded wiring loom with seven-pin base at front electrical loom ADR 38 regulations
Controls – Hydraulic controls at rear between ramps
Turntable Height – 1320mm
King Pin – MTE drop in 2” King pin
Ramps – 900mm x 2700mm Hydraulic
Signage – Clip on Hazard panels
Landing Legs – Landing legs with east / west pins
Deck Material – High Tensile steel construction 8mm deck with 12mm neck flanges





OPTIONAL EXTRAS (APPROX)
Wheels –  Aluminium Wheels machined finish
Wheels – Aluminium Wheels polished finish
Tyres –  Specific Branded Tyres (please state)
Ramps –  Double fold ramps 3700 x 900mm
Ramps –  Double fold ramps 4400 x 900mm
Greasing –  Centralised greasing brakes and suspension
Greasing –  Manual greasing brakes and suspension
Ship Locks  –  Twist locks to suit 1 20” container
Axles –  19.5” axles
Power Pack –  5.5HP Honda Power pack
Power Pack –  5.5HP Diesel Power pack
Electrical –  Air, electrical lead and hydraulic hose
Storage –  Tool box fitted
Water Tank –  Stainless steel water tank and tap
Water Tank – Plastic water tank
Rub Plate –  Semi oscillating rub plate
Rub Plate – liding rub plate
King Pin –  MTE 50mm drop in king pin
Top Deck –  Top deck (non folding type)
Deck –  Western Australia Specs 8mm deck
Drop Bed –  125mm Drop bed option





3R4 Extendable & Deck Widener Trailer

3 Rows of 4 Extendable & Deck Widener

3R4 Extendable & Deck Widener Trailer

The 3 Rows of 4 Extending and Deck Widener is a strong and robust trailer designed for the transport of heavy plant and machinery. Extending and Deck wideners are used mainly where wide machines need to be transported into areas where access is difficult. The wheels stay at 2.5m wide but decks can widen up to 3.5m and extend to a custom length to suit the size of the load.

STANDARD SPECIALS (APPROX)
Widening – Closed 2500mm – Open 3500mm
Axles – MTE 17.5”
Axle Spacing – 1250mm – 1250mm
Suspension – Hendrickson Airbag Suspension
Brakes – Outboard Drum Brakes
Brakes – Full air brakes to ADR, Australian compliance plate
Greasing – Manual
Tyres – 215 x 75 x 17.5
Wheels – Steel wheels
Spare Tyre Carriers – 2
Lighting – LED
Controls – Control mounted on the driver’s side
Rub Plate – Fixed Position
King Pin – 2” or 3 ½” King pin
Ramps – Eco Tail sliding ramp
Toolboxes- 2 XL toolboxes fitted in coaming – (totals to 8 small due to container locks)
Signage – “Do Not Overtake turning Vehicle” and “Oversize”
Landing Legs – Wind down support legs
Deck Material – Steel 80 Grade 6mm High Tensile plate floor
Top Deck – Flip over style gooseneck deck
Pontoon – 1250mm pontoon width bottom decks



OPTIONAL EXTRAS (APPROX)
Wheels – Aluminium Wheels Machined Finish
Wheels – Aluminium Wheels Polished Finish
Tyres – Specific branded tyres. (Please State)
Ramps – Bi-fold ramps – 2700mm & 1200 x 900mm. Quick release coupling
Ship Locks – 3 way container locks
Axles – MTE 19.5” axles and 265 tyres
Suspension – Hydraulic suspension
Power Pack – 5 HP Petrol Power Pack
Water Tank – Plastic Water Tank
Gooseneck – 2 position dolly gooseneck
Top Deck – Fold Up top Deck
Extendable – 1st Extension (1 x 3,800mm) plus extra widening cylinders
Extendable – 2nd Extension (1 x 3,700mm)







4R4 Full Widener Trailer

4 Rows of 4 Full Widener

4R4 Full Widener Trailer

The 4 Rows of 4 Full Widener is a strong and robust trailer designed for the transport of heavy plant and machinery. Drop bed options available, comes equipped with hydraulic widening and hydraulic suspension. Various forward lengths and axle spacing’s are available.

STANDARD SPECIFICATIONS (APPROX)
Dimensions & widening Overall Deck Length 13,190mm (12,200mm from base of gooseneck)
Forward Length – As per drawing
Deck Ride Height – 950mm
Deck Lowered Height – 830mm
Deck Raised Height – 1060mm
Closed Width 2490mm
Open Width 3600mm
Opening Widths – 2490mm, 2770mm 3050mm, 3330mm & 3600mm
Widening by four hydraulic rams
NOTE: Dimensions in this document are indicative only & may not be accurate to the latest model, an updated layout drawing showing true measurements should be supplied & signed off by customer
Deck Type Enclosed 6mm 690mpa high tensile decks with centre spine
370mm Deep profiled combing rails
Lashings 21 x Figure8 Lashings in Each Deck with protectors for hoses behind lashings
8x Figure8 Lashings in Coaming Rails each side
3 x 16mm Chain Lugs on each side of neck and 1x behind each Landing Leg
Twitch holders on both sides of gooseneck
Forward Length 13,202mm
Axles Axle spacing – 1220mm – 2440mm – 1220mm
MTE Axles 17.5”, Ten Stud, 225PCD Axles with Outboard Drums & 12-1/4” x 7-1/2″ Brakes
Suspension MTE Hydraulic Suspension with low maintenance quick change rams
Axle Retraction with lock-out taps at each axle to facilitate maintenance
2 x pins for holding retracted axles supplied
(Pins are for stationary Maintenance only)
Air operated axle Retraction Locks for 1st & last Axles for empty travel
Brakes ABS Full air brakes to ADR. 12-1/4” x 7-1/4” brakes with outboard drums
Greasing Manual Greasing system for suspension & brakes out to a remote block
Manual Greasing to all other points
Capacity (GVW) GVW – 65,000kg
Gooseneck
Rub Plate
King Pin		 Fixed Height Gooseneck.
Skid plate Height – 1300mm at 950mm Deck Height
(State Skid Plate height if different from standard)
Two Position Semi Oscillating skid plate
1 x MTE 90mm (3”) Drop-in King Pin supplied
Ramps 2700mm x 900mm Hydraulic Ramps
Landing Legs Heavy Duty Pin Type
Wheels & Spares 16 x – 17.5 x 6.75” – 10 Stud, 225 PCD Steel Wheels
16 x – 235/75 x 17.5”, 16 Ply – Synergy Tyres
Spare wheel carriers Horizontal mount at front of gooseneck
(Spares not included)
Tyres 235 x 17.5
Hydraulic Supply Hydraulic power source – truck. (See extras for power pack options)
Control Valves Main Hydraulic Controls mounted inside front toolbox in combing on Passengers side.
Hydraulic Controls include:
L/H Rear Wide – Widen/Narrow
R/H Rear Wide – Widen/Narrow
L/H Front Wide – Widen/Narrow
R/H Front Wide – Widen/Narrow
L/H Suspension – Raise/Lower
R/H Suspension – Raise/Lower
Ramps – Raise/Lower
Lock-out taps for L/H & R/H suspension mounted at rear between ramps.
Air switch Controls for L/H & R/H Widening Locks
Axle Retraction to all axles with shut-off taps at each suspension cylinder
Air switch Controls for 1st & last Axles Retraction locks
Lights Lighting to ADR Standards
LED Side Lights in combing x8 per side in combing rails
Amber reflectors next to each side light
LED Indicators Half way down sides
2x White LED 2061 marker lights on front of pontoons
Round Tail x4 & Indicator x2 Lights in Ramps
Round Tail x2 & Indicator x2 Lights in Bumper
LED Rotating Beacon in Driver side ramp
1x Number Plate Lamp
Red Rectangle Reflectors in Bumper, one each side
Signage Folding Oversize signs folding over ramps
Reversible 600×200 Chevrons on Antiluce fasteners on rear
Fixed Chevrons on Front of pontoons
Stick-on 600×200 Hazard Strip behind tail & indicator lights on Ramps
2x Ramps Warning Stickers on each ramp (rear & outsides)
Do Not Overtake Turning Vehicle Stickers on Ramps
Crush Zone stickers where applicable
Controls Warning Stickers by all control Valves & Taps
Ball Valve ‘Open/Close’ labels next to each ball valve on suspensions
Modern Transport Engineers Plaque Fitted to each side of neck
Ramps 900mm x 2700mm
Hub odometer 1 x Hub odometer 416RPK for 215/75 17.5 Tyres
Mud Flaps White mud flaps in front & behind every axle, MTE Mud Flaps at rear
Mud flaps on front pontoons
Toolboxes 2 x Covered chain bins (1x set in front of each deck)
6 x Lockable Toolboxes in combing Rails (x 3 each side)
Paint Sandblasted, etch primed and painted in two-pack to your fleet colours





OPTIONAL EXTRAS (APPROX)
Wheel & Tyres Spare Tyre and Steel Wheel 17.5” (28kg steel wheel)
Chrome Plated or Painted Steel Wheels (28kg)
Alloy wheels (machined finish) 17.5” (13kg)
Alloy wheels (polished finish) 17.5” (13kg)
Alloy wheels (premium finish) 17.5” (13kg)
Michelin Tyres trailer set (In Lieu of standard)
Hankook, Bridgestone or Pirelli Tyres trailer set
(in Lieu of standard)
Spare Tyre fixed pipe swivel mount Lift Crane with 12v winch at front of gooseneck
(For lifting trailer tyres on & off flat stack carriers)
17.5 x 9.5R tyres (in Lieu of 235 x 17.5)
19.5” Suspension 19.5” Axles and Suspension with 265 x 19.5 tyres
(990mm Deck Ride Height
Deck Lowered Height – 890mm – Deck Raised Height – 1165mm)
Deck options Custom Deck Length
Top Deck 3.5m long x 2.5m wide with 6ft ramps
(Moves power pack to under deck if supplied)
Drop Bed 125mm
Heavy Duty Deck Western Australia Specs 8mm deck
Skid-plate & Gooseneck MTE 50mm (2”) Drop in Kingpin
Sliding Skid Plate with Pneumatic locks
(Locks in 100mm increments, switch located on drivers side of skid plate)
Hydraulically Adjustable Compensating Gooseneck
Additional Hydraulic control at main control panel
Gooseneck – RAISE/LOWER
Hydraulic Supply 5.5 HP Diesel power pack, electric start with battery.
Mounted on Passengers side of gooseneck inside lockable box
5.5 HP Petrol power pack, electric start with battery
Mounted on Passengers side of gooseneck inside lockable box
Hoses Air Suzi, Electrical Suzi, EBS Suzi and Hydraulic Hoses supplied for front couplings
Ramps Double fold ramps 3700 x 900mm
Lights 2nd LED Rotating Beacon mounted in Passengers side Ramp.
Auxiliary Light Plugs x4 mounted at Front (behind landing legs) & at Rear (on ramps).
Greasing Centralised Automatic Greasing on timer 4R4
– 52 Points (48-Suspension, Brakes & 4-Widening)
High Pressure Lines & fittings Fitted to centralised greasing System
Remote Control 12 Function Apollo Remote system for operating Suspension & Widening (& Gooseneck if applicable, adds 2 functions)
Controls Include:
L/H Rear Wide – Widen/Narrow
R/H Rear Wide – Widen/Narrow
L/H Front Wide – Widen/Narrow
R/H Front Wide – Widen/Narrow
L/H Suspension – Raise/Lower
R/H Suspension – Raise/Lower
Gooseneck – Up/Down (if applicable Adds 2 more functions)
Ramps Lay-Flat Ramp Stays for Ramps
Includes 2 x Light Boards that attach to each ramp for when Ramps are in Lay Flat position with ‘Do Not Overtake’, Hazard Panel Stickers, Combination Tail Lights & Rotating Beacons in each board
Folding Aluminium Light Brackets on each Ramp for when leaning Ramps Back. (Includes 2x Combination Tail Lights fitted)
Heavy Duty Single Ramps 3000mm x 1050mm. C-Ramp010
Double Fold Ramps 3700mm x 900mm
Double Fold Ramps 4400mm x 900mm
Custom Ramps
Ship Locks Ship-Lock pockets for 1x 20’ Container
4 x Double ended Ship Locks supplied
Ship-Lock pockets for 1x 20’ & 1x 40’ Container
4 x Double ended Ship Locks supplied
Toolboxes Extra Lockable Toolboxes in combing rails
(One each side between 2nd & 3rd Axles)
Axles 19.5” axles and 265 x 19.5” tyres
Axles Air operated axle retraction 1st and last axle
Yard Release Yard release dual system
Power Pack 5.5HP Petrol Power pack 2000PSI mounted under gooseneck Bottom deck
Power Pack 5.5HP Diesel Power pack 2000PSI mounted under gooseneck bottome deck
Electrical Air, electrical lead and hydraulic hose
Storage Tool box fitted
Water Tank. Select preferred Tank mounting side
Passengers side
Drivers side		 Stainless Steel water tank and Tap.
Mounted to gooseneck.
Plastic Water Tank Fitted
Mounted to gooseneck.
Deck Surface Anti-slip grit to decks (can be done in any colour).
Rubber belting 13mm with 3mm steel, profile cut to fit deck.
Supplied Bolted to deck.
Drop Bed 125mm Drop bed
Paint Two Tone paint



4R4 Full Widener (Steering)

4 Rows of 4 Full Widener (Steering)

4R4 Full Widener (Steering)

The 4 Rows of 4 Full Widener is a strong and robust trailer designed for the transport of heavy plant and machinery. This steering model allows for greater maneuverability over both the standard model and castor steering model. Drop bed option available, comes equipped with hydraulic widening and hydraulic suspension. Various forward lengths and axle spacing’s are available.

STANDARD SPECIFICATION (APPROX)
Deck Height – 950mm
Deck Length – 1 = 12200mm or 2 = 11672mm
Widening – 2500mm Closed – 3600mm Open
Forward Length – 1 = 11767mm or 2 = 12367mm
Axles – 2 of Fixed 15″ ten stud axles
Axles – 2 of Steering 15″ ten stud axles
Axle Spacing – 1240mm – 2400mm – 1240mm
Suspension – MTE Hydraulic suspension
Brakes – 12-1/4″ x 7-1/2″ brakes with outboard drums
Brakes – ABS Full air brakes to ADR
Greasing – Grease nipples to suspension pins
Tyres – 235 x17.5 x 16ply
Wheels – Steel Wheels
Spare Tyre Carriers – 2
Rub Plate – Sliding
Ramps – 2800mm x 850mm
Signage – “Do Not Overtake Turning Vehicle” and “OVERSIZE”
Deck Material – Steel 80 grade high tensile Deck plate 6mm



OPTIONAL EXTRAS (APPROX)
Wheels – Aluminium Wheels Machined Finish
Wheels – Aluminium Wheels Polished Finish
Tyres – Specific branded tyres. (Please State)
Tyres – Spare tyre and Steel wheel 235 x 17.5
Ramps –  Double Fold Ramps 3700mm x 900mm
Ramps – Double Fold Ramps 4400mm x 900mm
Greasing –  Central greasing with timer
Ship Locks –  Twist locks to suit 1 x 40’ & 1 x 20’ container
Yard Release – Yard release Dual system
Power Pack – 5.5HP Petrol Power pack 2000PSI mounted under gooseneck Bottom deck
Power Pack – 5.5HP Diesel Power pack 2000PSI mounted under gooseneck Bottom deck
Electrical – Air, Electrical lead and Hydraulic Hose
Storage – Toolbox
Water Tank-  Plastic Water Tank fitted





4R4 Deck Widener Trailer

4 Rows of 4 Deck Widener

4R4 Deck Widener Trailer

The 4 Rows of 4 Deck Widener is a strong and robust trailer designed for the transport of heavy plant and machinery. Deck wideners are used mainly where wide machines need to be transported into areas where access is difficult and roads are narrow. The wheels stay at 2.5m wide but decks can widen up to 3.5m to suit the width of the load.

STANDARD SPECIFICATIONS (APPROX)
Dimensions & Widening Overall Deck Length 13,190mm (12,200mm from base of gooseneck)
Forward Length – As per drawing
Deck Ride Height – 950mm
Closed Width 2490mm
Open Width 3600mm
Opening Widths – 2490mm, 2770mm, 3050mm, 3330mm & 3600mm
Widening by four hydraulic rams
NOTE: Dimensions in this document are indicative only & may not be accurate to the latest model, an updated layout drawing showing true measurements should be supplied & signed off by the customer
Lashings Figure ‘8’ Lashings in top of inner & outer combing Rails on each deck.
3x 16mm Chain Lugs on each side of neck and 1x behind each Landing Leg
Twitch holders on both sides of the gooseneck
Axles Axle spacing – 1220mm – 2440mm – 1220mm.
MTE Axles 17.5”, Ten Stud, 225PCD Axles with Outboard Drums &
12-1/4” x 7-1/2″ Brakes
Suspension 17.5” Air Suspension
Dump switch valve for loading
Brakes EBS braking system. 12 1/4 x 7 1/2″ brakes with outboard drums. Full air brakes to ADR
Capacity (GVW) GVW – 60,000kg
Gooseneck
Rub Plate
King Pin
 Fixed Height Gooseneck
Skid plate Height – 1300mm at 950mm Deck Height
(State Skid Plate height if different from standard)
Two-position semi-oscillating skid plate
1 x MTE 90mm (3”) Drop-in King Pin supplied
Sliding Skid Plate with Pneumatic locks
Locks in 100mm increments, switch located on drivers side of skid plate
Ramps 2700mm x 900mm Hydraulic Ramps
Landing Legs Heavy Duty Pin Type
Hydraulic Supply 5.5 HP Diesel power pack, electric start with battery
Control Valves Main Hydraulic Controls mounted inside the front toolbox in combing
Please select preferred mounting side – Passengers OR Drivers
Hydraulic Controls include:
L/H Rear Wide – Widen/Narrow
R/H Rear Wide – Widen/Narrow
L/H Front Wide – Widen/Narrow
R/H Front Wide – Widen/Narrow
Ramps – Raise/Lower
Air switch Controls for L/H & R/H Widening Locks
Air Suspension Dump/Raise switch for loading
Greasing Manual Greasing system for suspension & brakes out to a remote block
Manual Greasing to all other points
Tyres 215 x 17.5
Wheels & Spares 18 x – 17.5 x 6.75” – 10 Stud, 225 PCD Steel Wheels
18 x – 235/75 x 17.5”, 16 Ply – Synergy Tyres
Spare wheel carriers Horizontal mount at front of gooseneck
(Spares not included)
Hub odometer 1 x Hub odometer 416RPK for 215/75 17.5 Tyres
Lights Lighting to ADR Standards
LED Side Lights in combing x8 per side in combing rails
Amber reflectors next to each side light
LED Indicators Halfway down the sides
2 x LED Amber marker lights on front of pontoons
Round Tail x4 & Indicator x2 Lights in Ramps
Round Tail x2 & Indicator x2 Lights in Bumper
LED Rotating Beacon in Driver side ramp
1 x Number Plate Lamp
Red Rectangle Reflectors in Bumper, one each side
Rub Plate Oscillating
Mud Flaps White mud flaps In front & behind every axle, MTE Mud Flaps at rear
Mud flaps on front pontoons
Toolboxes 2 x Covered chain bins (1x set in front of each deck)
6 x Lockable Toolboxes in combing Rails (x 3 each side)
Signage Folding Oversize signs folding over ramps
Reversible 600×200 Chevrons on Antiluce fasteners on rear
Fixed Chevrons on Front of pontoons
Stick-on 600×200 Hazard Strip behind tail & indicator lights on Ramps
2x Ramps Warning Stickers on each ramp (rear & outsides)
Do Not Overtake Turning Vehicle Stickers on Ramps
Crush Zone stickers where applicable
Controls Warning Stickers by all control Valves & Taps
Ball Valve ‘Open/Close’ labels next to each ball valve on suspensions
Modern Transport Engineers Plaque Fitted to each side of neck
Deck Type Enclosed steel 80 grade 690mpa high tensile Deck plate 6mm
Paint Sandblasted, etch primed and painted in two-pack to your fleet colours



OPTIONAL EXTRAS (APPROX)
Wheel & Tyres Spare Tyre and Steel Wheel 17.5” (28kg steel wheel)
Chrome-plated or Painted Steel Wheels (28kg)
Alloy wheels (machined finish) 17.5” (13kg)
Alloy wheels (polished finish) 17.5” (13kg)
Alloy wheels (premium finish) 17.5” (13kg)
Michelin Tyres trailer set (in Lieu of standard)
Hankook or Bridgestone Tyres trailer set (in Lieu of standard)
19.5” Air Suspension 19.5” Axles and Air Suspension with 265 x 19.5 tyres
(981mm Deck Ride Height)
Hydraulic Suspension Hydraulic Split axle Suspension:
(Replaces Air Suspension)
Hydraulic Controls include:
L/H Suspension – Raise/Lower
R/H Suspension – Raise/Lower
Lock-out taps for L/H & R/H suspension mounted at rear between ramps.
Axle Retraction to all axles with shut-off taps to each suspension cylinder
Steering 2 x Castor Steering Axles on rear
Skid-plate & Gooseneck MTE 90mm (3-1/2”) Drop in Kingpin.Hydraulically Adjustable Compensating Gooseneck
Additional Hydraulic control at main control panel
Gooseneck – RAISE/LOWER
Hydraulic Supply
Select preferred motor mounting side
Passengers side
Drivers side
 5.5 HP Petrol power pack, pull start only
Mounted on side of gooseneck inside lockable box
5.5 HP Petrol power pack, electric start with battery
Mounted on side of gooseneck inside lockable box
Deck options Custom Deck Length
Top Deck 3.5m long x 2.5m wide with 6ft ramps
(Moves power pack to under deck if supplied)
Heavy Duty Deck Western Australia Specs 8mm deck
Hoses Air Suzi, Electrical Suzi, EBS Suzi and Hydraulic Hoses supplied for front couplings
Lights 2nd LED Rotating Beacon mounted in Passengers side Ramp
Auxiliary Light Plugs x4 mounted at Front (behind landing legs) & at Rear (on ramps)
Brakes Yard release Dual system (one each side of trailer)
Raise/Lower Auto Levelling Valve,
Self-raising Resets to ride height once a pre-programmed speed is reached after loading on EBS Air Suspension Only
Greasing Centralised Automatic Greasing on timer 3R4
– (Brakes & Widening)
Remote Control 8 Function Apollo Remote system for operating Suspension & Widening (& Gooseneck if applicable, adds 2 functions)
Controls Include:
L/H Rear Wide – Widen/Narrow
R/H Rear Wide – Widen/Narrow
L/H Front Wide – Widen/Narrow
R/H Front Wide – Widen/Narrow
Gooseneck – Up/Down (if applicable Adds 2 more functions)
Winch 20,000lb Winch Mounted on gooseneck
Hydraulic driven with 30m of 14mm Wire Rope with Thimble at end
Snatch mounted at base of gooseneck
Controlled with Hydraulic Lever on Trailer & a 2 Function Remote control
Landing Legs Hydraulic Landing Legs with Hold/Lower Valve
Additional Hydraulic control at main control panel:
Landing Legs – RAISE/LOWER
Wind-up Landing Legs mounted instead of pin type
Ramps Lay-Flats for Ramps
Heavy Duty Single Ramps 3300mm x 1050mm
Double Fold Ramps 3700mm x 900mm
Double Fold Ramps 4400mm x 900mm
Custom Ramps
Greasing Central greasing with timer
Ship Locks Ship-Lock pockets for 1x 20’ Container
With 4x Double ended Ship Locks supplied
Ship-Lock pockets for 1x 20’ & 1x 40’ Container
4 x Double ended Ship Locks supplied
Toolboxes Extra Lockable Toolboxes in combing rails
(One each side between 2nd & 3rd Axles)
Axles 19.5” axles and 265x 19.5 tyres
Axles Air operated axle retraction 1st and last axle
Yard Release Yard release Dual system
Power Pack 5.5HP Petrol Power pack 2000PSI mounted under gooseneck Bottom deck
Power Pack 5.5HP Diesel Power pack 2000PSI mounted under gooseneck Bottom deck
Electrical Air, Electrical lead and Hydraulic Hose
Storage Toolbox
Water Tank
Select preferred Tank mounting side
Passengers side
Drivers side
 Stainless Steel water tank and Tap
Mounted to gooseneck
Plastic Water Tank Fitted
Mounted to gooseneck
Turntable Sliding turntable
Deck Western Australia Specs 8mm deck
Deck Surface Anti-slip grit to decks (can be done in any colour).
Rubber belting 13mm with 3mm steel, profile cut to fit deck.
Supplied Bolted to deck.
Drop Bed Drop Bed 125mm
Paint Two Tone paint

4R4 Deck Widener Trailer (Air Suspension)

4 Rows of 4 Deck Widener Trailer (Air Suspension)

4R4 Deck Widener Trailer (Air Suspension)

The 4 Rows of 4 Deck Widener is a strong and robust trailer designed for the transport of heavy plant and machinery. Deck wideners are used mainly where wide machines need to be transported into areas where access is difficult and roads are narrow. The wheels stay at 2.5m wide but decks can widen up to 3.5m to suit the width of the load.

STANDARD SPECIFICATIONS (APPROX)
Deck Height – 950mm
Deck Widths – 2 x 1250mm
Widening – Closed 2500mm – Open 3500mm
Axles – 19.5” eight stud axles
Axle Spacing – 1220mm – 2400mm – 1220mm
Suspension – Hendrickson air suspension
Brakes – 15” x 8.625” brakes with outboard drums
Brakes – Full air brakes to ADR With ABS
Tyres – 265 x 19.5
Wheels – Steel wheels
Spare Tyre Carriers – 2
Lighting – LED
Rub Plate – 2 Position
Ramps – 2700mm x 900mm
Signage – “Do Not Overtake Turning Vehicle” and “OVERSIZE”
Deck Material – Steel 80 grade high tensile Deck plate 6mm
Ship Locks – Twist locks – 1 x 20′ container



OPTIONAL EXTRAS (APPROX)
Wheels – Aluminium Wheels Machined Finish
Wheels – Aluminium Wheels Polished Finish
Tyres – Specific branded tyres. (Please State)
Ramps – Double Fold Ramps
Axles – Axle retraction per axle
Axles – 2 x Steering Axles 2 x Fixed Axles (Stefan)
Axles – 2 x Steering Axles 2 x Fixed Axles (BPW)
Suspension – MTE Hydraulic Suspension
Yard Release – Yard release Dual system
Power Pack – 5.5HP petrol Power pack 2000PSI mounted
Power Pack – 5.5HP Diesel Power pack 2000PSI mounted
Electrical – Air, Electrical lead and Hydraulic Hose
Storage – Toolbox
Water Tank – Plastic Water Tank
Winch – 20,000lb Winch on gooseneck
Deck – 8mm deck instead of 6mm decks Adds approx. 500kg

4R4 Extendable & Deck Widener Trailer

4 Rows of 4 Extendable & Deck Widener Trailer

4R4 Extendable & Deck Widener Trailer

The 4 Rows of 4 Extending and Deck Widener is a strong and robust trailer designed for the transport of heavy plant and machinery. Extending and Deck wideners are used mainly where wide machines need to be transported into areas where access is difficult. The wheels stay at 2.5m wide but decks can widen up to 3.5m and extend to a custom length to suit the size of the load.

STANDARD SPECIFICATIONS (APPROX)
Widening Closed 2500mm – Open 3500mm
Axles 19.5” Disc Brake BPW Axles
Axle Spacing 1250mm – 1250mm – 1250mm
Axle Retraction Axle lift on 1st Axle and 4th Axle (2 different lengths of hooks)
Suspension BPW Airbag Suspension.
Brakes Disc Brake
Brakes Full air brakes to ADR. With ABS Australian compliance plate.
Greasing Manual greasing
Tyres 265 x 75 x 19.5
Wheels Steel wheels
Spare Tyre Carriers 2
Lighting LED
Controls Control mounted on the driver’s side
Rub Plate Two position
King Pin 2” or 3 ½” King pin
Ramps Bi-fold ramps – 2700mm & 1200 x 900mm. Quick release coupling
Toolboxes 4 XL toolboxes fitted in coaming – (totals to 8 small due to container locks)
Signage “Do Not Overtake turning Vehicle” and “Oversize”
Landing Legs Wind down support legs
Deck Material Steel 80 Grade 6mm High Tensile plate floor.
Top Deck Fold Up top Deck
Pontoon 1250mm pontoon width decks



OPTIONAL EXTRAS (APPROX)
Wheels – Aluminium Wheels Machined Finish
Wheels – Aluminium Wheels Polished Finish
Tyres – Specific branded tyres. (Please State)
Ship Locks – 3 way container locks
Suspension – Hendrickson Air Suspension
Brakes – MTE 19.5 Drum Brakes
Power Pack – 5 HP Petrol Power Pack
Water Tank – Plastic Water Tank
Extendable – 1st Extension (1 x 3,800mm) plus extra widening cylinders
Extendable – 2nd Extension (1 x 3,700mm)

4R4 Swingwide Trailer

4 Rows of 4 Swingwide Trailer

4R4 Swingwide Trailer

The 4 Rows of 4 Swingwide is a strong and robust trailer designed for the transport of awkward size loads and machinery. Due to its large GVM, it is able to securely and safely load your heavy duty gear.

STANDARD SPECIFICATIONS (APPROX)
Deck Height 950mm
Widening Width 2500mm closed Width 4000mm open
Axles 15″ Ten stud
Axle Spacing 1220mm – 2400mm – 1220mm
Suspension Hydraulic Suspension
Brakes 12 ¼” x 7 ½” brakes with outboard drums
Brakes Full air brakes to ADR
Greasing Grease nipples to suspension pins
Tyres 215 x 17.5
Wheels Steel Wheels
Spare Tyre Carriers 2 Spare tyre carriers
Lighting LED
Rub Plate Hydraulic raising rub plate
Ramps 2800mm x 850mm
Signage Signs “Do Not Overtake Turning Vehicle” and “OVERSIZE” will be fitted
Deck Material Steel 80 grade high tensile Deck plate 6mm
Drop Bed 300mm Drop Bed



OPTIONAL EXTRAS (APPROX)
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish
Tyres Extra spare Tyre and Steel wheel.
Tyres Specific branded tyres. (Please State)
Ramps Double Fold Ramps 3700mm x 900mm
Greasing Central greasing with timer
Ship Locks Twist locks to suit 1 x 40’0” – 1 x 20’0” container
Power Pack 5.5HP Petrol Power pack 2000PSI mounted under gooseneck Bottom deck
Power Pack 5.5HP Diesel Power pack 2000PSI mounted under gooseneck Bottom deck
Electrical Air, Electrical lead and Hydraulic Hose
Storage Toolbox fitted
Water Tank Plastic Water Tank fitted
Yard Release Yard release Dual system

3 Axle Drop Deck Float

3 Axle Drop Deck Float

3 Axle Drop Deck Float

The 3 Axle Drop Deck Float is built for transporting larger heavy equipment with a high GVW. This is a low maintenance trailer with air bag suspension, optional plywood decks and hydraulics that run off the truck. Customisable options are available.

STANDARD SPECIFICATIONS (APPROX)
Width 2490mm
Deck Height 950mm
Axles MTE 19.5” Axles
Axle Spacing 1300mm – 1300mm
Suspension Air Suspension
Brakes ADR Brakes
Hydraulics All lines to have removable couplings
Tyres 265 x 19.5
Wheels Steel Wheels
Lighting LED Lights in rear bumper and ramps & flashing beacon
Toolboxes 2 x tool boxes
Water Tank Plastic water tank
Signage Over size signs
Landing Legs Heavy Duty landing legs
Deck Material 6mm plate deck
Tie Down Points Tie down points on top of deck



OPTIONAL EXTRAS (APPROX)
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish (12.8kg / Wheel)
Tyres Specific branded tyres. (Please State)
Tyres Extra spare Tyre and Steel wheel.
Ramps Detachable Double fold Ramps
Ramps Hydraulic Ramps 2700mm x 860mm
Ship Locks 3 way container locks
Power Pack Electric Power pack 12Volt
Power Pack 5.5 HP Honda power pack
Ringfeder 30 Tonne Ringfeder and Brakes
Gates 15 – 2.0m x 1.5m gates

3 Axle Drop Deck Extendable Float

3 Axle Drop Deck Extendable Float

3 Axle Drop Deck Extendable Float

The 3 Axle Drop Deck Float is built for transporting larger heavy equipment with a high GVW. This is a low maintenance trailer with extendable length, air bag suspension, optional plywood decks and hydraulics that run off the truck. Customisable options are available.

STANDARD SPECIFICIATIONS (APPROX)
Width 2490mm
Deck Height 950mm
Axles 15” Axles
Axle Spacing 1250mm – 1250mm
Suspension Air Suspension
Brakes Outboard Drums 12-1/4” x 7-1/2” with Outboard Drums
Brakes ADR with ABS Brakes
Hydraulics All lines to have removable couplings
Tyres 215 x 17.5
Wheels Steel Wheels
Lighting LED & Lights in rear bumper & Beacon in ramps
Ringfeder Ring feeder mount
Ramps Hydraulic Ramps 2700mm x 860mm
Ramps Ramps to top deck
Toolboxes 2 x tool boxes
Signage Over size signs
Landing Legs Heavy Duty landing legs
Deck Material 5mm plate deck
Tie Down Points Tie down points on top of deck
Ship Locks 3 way container locks ( must suit 40’ container on bottom deck)



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish
Tyres Extra spare Tyre and Steel wheel.
Tyres Specific branded tyres. (Please State)
Ramps Double fold Ramps
Ship Locks 3 way container locks
Power Pack Electric Power pack 12Volt
Power Pack 5.5 HP Honda power pack
Gates 15 – 2.0m x 1.5m gates

3A Tilt Trailer

3 Axle Tilt trailer

3A Tilt Trailer

The 3 Axle Tilt Trailer is a versatile heavy transport trailer that is suitable for all freight tasks. Designed to be self-loading with the tilt deck it is the ideal recovery trailer solution

STANDARD SPECIFICATIONS (APPROX)
Width 2490mm
Deck Height 940mm
Axles 17.5″
Axle Spacing 1300mm – 1300mm
Suspension Hendrickson Air Suspension
Brakes 12-1/4” x 7-1/2” with Outboard Drums
Brakes ADR
Hydraulics Truck hydraulics
Hydraulics All lines to have removable couplings
Tyres 13 x 235 x 17.5
Wheels Steel Wheels
Lighting Removable revolving light at rear
King Pin 50mm and 90mm drop in king pin
Toolboxes Two sliding tool boxes (one each side)
Signage Oversize sign (Removable)
Landing Legs Heavy Duty Pin Type
Deck Material 5mm Plate



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish
Tyres Extra spare Tyre and Steel wheel.
Tyres Specific branded tyres. (Please State)
Spare Tyre Carrier Spare tyre carriers; on one side takes a 17.5 and the other side will take a 22.5 tyre (winch up type)
Remote Control Remote control Hydraulics
Ship Locks Twist locks 3 way
Water Tank Plastic water tank
Winch 30,000lb winch

3A Tilt Slide Trailer

3 Axle Tilt Slide Trailer

3A Tilt Slide Trailer

The 3 Axle Tilt Slide Trailer is a versatile heavy transport trailer that is suitable for all freight tasks. Designed to be self-loading with the sliding tilt deck it is the ideal recovery trailer solution.

STANDARD SPECIFICATIONS (APPROX)
Length 13716mm
Deck Length (Overall) 10679mm
Axles 15″ 10 Stud
Suspension Hendrickson air suspension with raise and lower valve
Brakes 12-1/4” x 7-1/2”
Brakes ADR ABS with bayonet fitting on front
Hydraulics Rotary fl ow divider Fitted on gooseneck
Tyres 215 x 70 x 17.5
Wheels Alloy
Spare Tyre Carriers Single mounted on headboard
Lighting LED Multi volt
Controls Remote to tilt, slide and winch operations
Rub Plate 8mm Rubplate
King Pin 50mm
Toolboxes 2 x toolboxes
Landing Legs Flat feet 2 speed K-Hitch
Deck Material 6mm Hardox
Top Deck 4mm Hardox
Tie Down Points 14 x bottom deck 6 x top deck
Rope rails 25mm full length top deck only.
Ship Locks 3 x way twist locks with storage for pedestals.
Winches 2 x 20,000lb ape stumpy hydraulic with 16mm cable and tensioners & free spool



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish
Tyres Extra spare Tyre and Steel wheel.
Tyres Specific branded tyres. (Please State)
Remote Control Remote control Hydraulics
Ship Locks Twist locks 3 way

3R4 Drop-Bed Triple Steerable Extendable

3 Rows of 4 Drop-Bed Triple Steerable Extendable

3R4 Drop-Bed Triple Steerable Extendable

The 3 rows of 4 Drop-bed Triple extendable is built for transporting long loads with a high GVW. This is a
low maintenance trailer with air bag suspension and hydraulics running off the truck. Non-Drop bed and
customisable options are also available.

STANDARD SPECIFICATIONS (APPROX)
GVM 40,000kg
Length Max extended Length 33,000mm
Width 2500mm
Deck Height Max 900mm
Axles 3 x 15” ten stud command
Suspension Hendrickson Air
Brakes Sealco
Hydraulics Hydraulics Powered by Truck
Tyres 12 x 215 x 17.5
Wheels Steel
Spare Tyre Carriers Spare tyre carrier only Spare not supplied
Steering Knuckle steer axles Manual operation
King Pin 90mm
Landing Legs K-Hitch full weight landing legs
Deck Material Steel or timber deck



OPTIONAL EXTRAS (APPROX)
Wheels Aluminium Wheels Machined Finish (12.8kg / Wheel)
Wheels Aluminium Wheels Polished Finish (12.8kg / Wheel)
Tyres 235 x 17.5 tyres (in Lieu of 215 x 17.5)
Wheels carrier Dual spare wheel carrier
Remote Control Radio controls
Ship Locks 12 Twist locks fitted
Suspension Smallest spread sprung suspension 2500mm (Deduct)
Power Pack 5 HP Diesel Power pack if required
Storage Extra toolbox
Steering Indexed Steering from the fifth wheel
Bolster Sliding Bolster
Drop Bed Drop Deck with Double fold ramps and beaver tail

3R4 Steerable Triple Extendable

3 Rows of 4 Steerable Triple Extendable Trailer

3R4 Steerable Triple Extendable

The 3 Rows of 4 Steerable Triple Extendable is built for transporting long loads with a high GVW. This is a low maintenance trailer with air bag suspension and hydraulics running off the truck. Customisable
options are also available.

STANDARD SPECIFICATIONS (APPROX)
Length Max extended Length 38,000mm
Width 2500mm
Deck Height Max 1420mm
Axles 3 x 19.5” Straight axles
Axle Spacing 1800mm
Suspension Hendrickson Air
Brakes Sealco
Tyres 12 x 265 x 19.5 tyres
Wheels Steel Wheels
Controls Remote Control
Steering / Towing Ball race Manual steering operation
King Pin 90mm
Toolboxes x1
Landing Legs K-Hitch full weight landing legs



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish
Ship Locks 4 Twist locks
Power Pack 5.5HP Diesel Power pack if required
Storage Extra Toolbox
Steering Indexed Steering from the fifth wheel



3A Extendable Semi Flat Top Trailer

3 Axle Extendable Semi Flat Top Trailer

3A Extendable Semi Flat Top Trailer

The 3 Axle Extendable Semi Flat Top Trailer is built for transporting long loads with a high GVW. This is a low maintenance trailer with spring suspension and hydraulics running off the truck. Customisable
options are also available.

STANDARD SECIFICATIONS (APPROX)
Length 13730mm
Length (Extended) 21950mm
Width 2490mm
Axles K-Hitch 20” Drum Brake axles with 22.5”x10 stud, 16½” x 7” S-Cam foundation brakes.
Suspension 9’-1” K-Hitch over slung spring suspension – 8 leaf springs.
Brakes ABS Westinghouse type with 30/30 spring brakes to all axles; all equipment complies with ADR regulations.
Tyres Twelve (12) Aeolus 11R22.5.
Wheels Twelve (12) Steel wheels – 8.25 x 22.5.
Spare Tyre Carriers One (1) off dual type.
Electrical 6mm moulded loom with 7 pin base at front, electrical loom to ADR 38 regulations. All lighting LED multi
volt.
Rub Plate Fixed high tensile fabricated plate with 90mm bolt in road train rated king pin – 2 pin position.
Toolboxes Two (2) only standard 1200 x 550 x 550 fitted with two (2) under box mounting straps bolted to frame.
Bearer Box: Fitted behind tri-axle suspension.
Water Tank One (1) 60 litre plastic
Signage Oversize, Road Train and rear revolving amber light
Landing Legs K-Hitch 2 speed legs right hand side winding with compensating foot
Mud Guards Plastic
Ship Locks Six (6) rows of Twist locks to suit 1 x 40”, 2 x 20” or 1 x 20” Laden.
Winches Eleven (11) Sliding Winches in tracks
Gate Carrier Provision only
Load Racks  Two (2) off pipe racks with pipe cross bars fitted between uprights
Frame Construction Front and rear main rail sections are fabricated hi tensile Beams with Rollers Fitted at Junction of Pull out
Section and Cradle Rollers at Tail End of Front Beam Section for easy sliding.
Cross Members RSJ section 102 x 45 fitted through plasma cut main rail webs.
Coaming 125 x 65 (5”) RSJ style side coaming.
Tie Rail 25mm NB pipe with posts on end of each cross member.
Front & Rear Bolster Cast corners on pressed section, front bolster and RHS rear bolster with integral load rack pockets and 20mm
NB pipe tie rails.
Bumper RHS verticals and RHS rear under run protection bar suitably supported and welded to rear under the main
frame.
Floor 3mm steel chequer plate flooring supported by 30 x 30 RHS runners. Extra floor runners



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish
Tyres Specific branded tyres. (Please State)
Tyres Extra spare Tyre and Steel wheel.
Railing Gates and Headboard
Water Tank Stainless Water tank and Tap

4A Flat Top Low Loader Trailer

4 Axle Flat Top Low Loader Trailer

4A Flat Top Low Loader Trailer

The 4 Axle Flat Top Low Loader is a medium sized tow behind solution for transporting machinery, with a GVW of up to 29,000kg it is a versatile option for most jobs. Optional air suspension is available.

STANDARD SPECIFICATIONS (APPROX)
Length 11500mm
Width 2490mm
Axles 15″ Ten stud Axles
Suspension 3 leaf suspension
Brakes 12 1/4 x 7 1/2 brakes with outboard drums
Brakes Sealco ABS
Tyres 215 x 17.5
Wheels Steel Wheels
Lighting LED
Tow eye 50mm tow eye
Ramps 2.7m x 860mm Hydraulic ramps
Toolboxes Heavy Duty toolbox
Deck Material 5mm Cheka plate deck
Mud Guards Front guards and flaps on bogie
Tie Down Points Certified lashing ties
Tie Down Points 25mm NB Pipe tie rail under deck
Water tank Plastic Water tank and soap dispenser fitted



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish (12.8kg / Wheel)
Wheels Aluminium Wheels Polished Finish (12.8kg / Wheel)
Tyres Specific branded tyres. (Please State)
Tyres Extra spare Tyre and Steel wheel.
Suspension Air Suspension
Storage Tool box fitted

5A Flat Top Trailer

5 Axle Flat Top Low Loader

5A Flat Top Trailer

The 5 Axle Flat Top Low Loader is our largest tow behind solution for transporting machinery, with a GVW of 40,000kg it is a versatile option for most jobs. Optional air suspension is available.

STANDARD SPECIFICATIONS (APPROX)
Width 2490mm
Deck Length (Overall) 12500mm
Axles 15″ Ten stud Axles
Suspension 3 leaf suspension
Brakes 12 1/4 x 7 1/2 brakes with outboard drums
Brakes Sealco ABS
Tyres 215 x 17.5
Wheels Steel Wheels
Power Source 24 Volt power pack under deck LHS finished at front with 175 amp Anderson Plug
Lighting LED
Tow Eye 50mm tow eye
Ramps 2.7m x 860mm Hydraulic ramps
Toolboxes Heavy Duty toolbox
Deck Material 5mm Cheka plate deck
Mud Guards Front guards and flaps on bogie
Tie Down Points Certified lashing ties
Tie Down Points 25mm NB Pipe tie rail under deck
Water Tank Plastic Water tank and soap dispenser fitted



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish (12.8kg / Wheel)
Wheels Aluminium Wheels Polished Finish (12.8kg / Wheel)
Tyres Specific branded tyres. (Please State)
Tyres Extra spare Tyre and Steel wheel.
Ramps Double fold Ramps
Suspension Air Suspension
Power Pack 5HP Petrol Power Pack
Storage Tool box fitted

5A Deck Wideniing Flat Top Low Loader

5 Axle Deck Widening Flat Top Low Loader

5A Deck Wideniing Flat Top Low Loader

The 5 Axle Deck Widening Flat Top Low Loader is our largest tow behind solution for transporting machinery, with a GVW of 40,000kg it is a versatile option for most jobs. From the outback to metro areas, the Deck Widener is a perfect transport solution for your needs. The Deck Widener features a fixed wheel track for optimal manoeuvrability around town and on site. Optional air suspension is available.

STANDARD SPECIFICATION (APPROX)
Length 11500mm
Width 2490mm
Widening 2500mm – 3500mm (Bottom Deck Only)
Axles 15″ Ten stud Axles
Suspension 3 leaf suspension
Brakes 12 1/4 x 7 1/2 brakes with outboard drums
Brakes Sealco ABS
Tyres 215 x 17.5
Wheels Steel Wheels
Power Source 24 Volt power pack under deck LHS finished at front with 175 amp Anderson Plug
Lighting LED
Tow Eye 40 or 50mm tow eye
Ramps 2.7m x 860mm Hydraulic ramps
Toolboxes Heavy Duty toolbox
Deck Material 6mm Cheka plate deck
Mud Guards Front guards and flaps on bogie
Tie Down Points Certified lashing ties



OPTIONAL EXTRAS (APPROX)
Wheels Aluminium Wheels Machined Finish (12.8kg / Wheel)
Wheels Aluminium Wheels Polished Finish (12.8kg / Wheel)
Tyres Specific branded tyres. (Please State)
Tyres Extra spare Tyre and Steel wheel.
Suspension Air Suspension
Storage Tool box fitted
Deck Extra 1000mm deck length
Deck Extra 2300mm deck length

6A B-Train Low Loader

6 Axle B-Train Low Loader

6A B-Train Low Loader

The 6 Axle B-Train Low Loader is one of our most popular trailers, Designed for transporting multiple plant or machines at one time, with increased manoeuvrability and stability over a standard low loader. Customisable with optional extras such as widening decks and key hole slots, the B-Train will carry any load.

STANDARD SPECIFICATIONS (APPROX)
Length 19300mm
Axles 6 – 19.5″ MTE outboard axles
Suspension Air suspension with dump on rear unit
Brakes EBS
Tyres 19.5” tyres
Wheels Steel wheels
Power Source Truck Hydraulics
Lighting Full LED Lights
Rub Plate Fixed Rub Plate
5th Wheel 50mm sliding fifth wheel on front unit.
King Pin 50mm King Pin
Ramps 2400mm x 680mm Hydraulic Ramps at rear
Toolboxes 1x 900mm Lockable Toolbox with stainless lid
Dunnage Tray 1x 2400mm Dunnage tray
Chain Bins 1x Covered chain bin on rear beaver tail between ramps
Deck Material 300 x 50mm pine timber on outsides of deck
Deck Material Steel Checker plate down center of decks & above wheels on rear unit
Tie Down Points Rope Rail lashing under 100mm RSJ coaming (both units)



OPTIONAL EXTRAS (APPROX)
Wheels Aluminium Wheels Machined Finish (12.8kg / Wheel)
Wheels Aluminium Wheels Polished Finish (12.8kg / Wheel)
Tyres Spare tyre and steel wheel (28kg)
Ramps Custom Ramps up to 2.7m Long
Ramps Air operated pop-up ramps in front unit to top deck.
Ship Locks Ship lock Pockets for 2 x 20’ containers. (Includes stools required for front unit). (8x Ship locks supplied).
Signage Slide out chevrons with Lights, Front & Rear.
Widening Deck Widening Rear Unit.
Railing Custom Coaming Rails & Lashings
Keyhole Slots Keyhole slots down both sides of decks.
Power Pack 5 HP Petrol power pack (Pull start)
Power Pack 5 HP Petrol power pack (Electric start)
Power Pack 12V Electric Power pack (Can be fitted inside a toolbox).
Storage Extra Lockable 900mm Toolbox with stainless lid.
Storage Extra Dunnage Tray (2400mm)
Winch 20,000lb Hydraulic Winch fitted with Remote.
Restraint Gear Load Restraint Kit:
8x 4.5m long 10mm transport chain, with clevis grab hooks at one end.
8x Ratchet chain twitches
10x load binders 9m long, 2500kg rated

3A Hardox Semi Tipper Trailer

3 Axle Hardox Semi Tipper

3A Hardox Semi Tipper Trailer

The 3 Axle Hardox Semi Tipper is our standard tipper, Constructed out of Tough 5mm Hardox, the steel bin is built to transport loose materials of any kind. This tipper has full weight landing legs, ABS brakes &
3 leaf spring suspension as standard.

STANDARD SPECIFICATIONS (APPROX)
Length 8534mm
Hardox Thickness 5mm Hardox Floor and 4mm sides
Side Height Side height 1200mm
Axles 22.5″ Ten stud Axles 16-1/2 x 7″ Brakes
Suspension 2500mm Tri 3 Leaf Suspension
Brakes 22.5″ Ten stud Axles 16-1/2 x 7″ Brakes
Brakes ABS
Hoist 25 Tonne Delta hoist
Tyres 15R 22.5 tyres on Alloy wheels
Spare Tyre Carriers 1 Tyre Carrier
King Pin 1-2″
Landing Legs K-Hitch Full weight land legs



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish (12.8kg / Wheel)
Wheels Aluminium Wheels Polished Finish (12.8kg / Wheel)
Tyres Extra spare Tyre and Steel wheel.
Tyres Specific branded tyres. (Please State)
Brakes ABS Multi Volt Kit Fitted

2A Boat Transporter Trailer

2 Axle Boat Transporter Trailer

2A Boat Transporter Trailer

The Axle Boat Transporter trailer is built to transport large boats up to 20,000kg. With vertical staunching sockets, the trailer can be adjusted to accommodate a large range boats.

STANDARD SPECIFICATIONS (APPROX)
Width 2500mm wide across tyres max width
Forward Length 9050mm
Axles 15″ MTE Ten Stud Axles
Suspension Air Suspension
Suspension Suspension travel 150mm
Brakes 1/4″ x 5-1/2″ Brakes
Brakes Brakes to ADR standards
Tyres 8- 215 x 17.5 x 16 ply tyres
Wheels Alloy Wheels
Lighting LED lights
Rub Plate Fixed Rub Plate
Rub Plate Height 1250mm
King Pin 2″ King Pin
Landing Legs 1- Landing leg pin type
Tie Down Points Certified Lashing Ties
Sockets Vertical Staunching sockets



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish (12.8kg / Wheel)
Wheels Aluminium Wheels Polished Finish (12.8kg / Wheel)
Tyres Extra spare Tyre and Steel wheel
Tyres Specific branded tyres. (Please State)
Suspension Hydraulic Suspension
Power Pack 5 HP Petrol power Pack
Coating Zinc spray

3R4 Panel Trailer

3 Rows of 4 Hydraulic Suspension Panel Trailer

3R4 Panel Trailer

The 3 Rows of 4 Hydraulic Suspension Panel trailer is built to transport concrete panels, the panel trailer is equipped with removable panel frames and hydraulic panel clamps.
The hydraulic panel clamps can extend to handle more pressure. An extendable option is available.

STANDARD SPECIFICATIONS (APPROX)
Width 2500mm (Bottom Deck)
Deck Height 900mm (Travelling)
Internal Deck Height 250mm Fully Lowered
Forward Length 9.5 metres
Overhang 3.9 metres rear overhang (optional can be shorter)
Lift Height 600mm (suspension and gooseneck)
Axles MTE 19.5″ Eight Stud Axles
Axle Spacing 1600mm
Suspension MTE Hydraulic Suspension, 10,000kg Capacity
Brakes Full air brake to ADR
Tyres 265 x 19.5″
Wheels Steel Wheels
Lighting Full LED
Turntable Height Adjustable Turntable Height (1370mm std)
King Pin 2″
Landing Legs Full weight landing legs heavy duty RHS type
Tie Down Points Certified lashing ties



OPTIONAL EXTRAS
Wheels Aluminium Wheels Machined Finish (12.8kg / Wheel)
Wheels Aluminium Wheels Polished Finish (12.8kg / Wheel)
Power Pack 5 HP Petrol power Pack
Coating Zinc

3A House Trailer

3 Axle House Trailer

3A House Trailer

The Non-steer House Trailer is our basic house trailer. It is perfect for jobs that require a simple pick up or drop off at locations. It is less manoeuvrable then our other house trailers, but is more affordable.
Castor Steering or Command Steer options are available as optional extras.

STANDARD SPECIFICATIONS (APPROX)
Deck Height Lowered 880mm
Deck Height Raised 2090mm
Deck Length Closed 10,650mm
Deck Length Open 18,000mm
Bottom Deck Width 2500mm
Top Deck Width 2500mm
Rear Overhang 2860mm
Forward Length 10,630mm
Axles 17.5 Ten stud
Axle Spacing 1830mm
Suspension Suspension – Double acting single stage cylinders
Suspension All suspensions have manual retraction locks (hydraulic valves)
Brakes Outboard Drums
Hydraulics Hydraulic controls on rub plate
Hydraulics Operating pressure up to 3000 PSI
Hydraulics Single stage double acting front lift rams
Tyres 235 x 17.5
Wheels Steel Wheels
Power Source 14 HP diesel motor
Lighting LED with 2x Rotating Beacons in rear
Electrical Extension by a roll of hose includes brakes
Gooseneck 14” Two Beam gooseneck with alloy tread plate on top deck
Deck Material 4mm Chequer Plate outsides of Bottom Deck
Top Deck Gates on Top Deck
Tie Down Points Rope Rails
Sockets Sockets to take 125 x 125mm RHS whiskers (not supplied) set 4″ down
Sockets Rear extension sockets



OPTIONAL EXTRAS (APPROX)
Wheels Aluminium Wheels Machined Finish
Wheels Aluminium Wheels Polished Finish
Tyres Specific branded tyres. (Please State)
Tyres Extra spare Tyre and Steel wheel.
Controls 4 Proportional control valves.
Controls 4 Leaver 32 Channel Radio controller. (Proportional lifting)
Controls 6 Proportional control valves. (3x lift, 3x steering) (one of steering valves for future clip-on)
Remote Controls 6 Leaver Radio controller. (Proportional lifting & steering) (Motor start/stop switch, motor rev-up switch, 3x steering
Signage Sliding wing on front with pull out RHS. (maximum 3)
Steering Rear axle castor steering
Extension Rear extension bumper
Extension 9,500mm Forward Length with 3690mm Rear Overhang (10,590mm Closed deck length)
Lighting Light plugs on sides for house lights.
Hydraulics Front Hydraulic side shift
Hydraulics Centre Hydraulic side shift
Hydraulics Rear Hydraulic side shift
Hydraulics Internal Track system for hoses
Tie Down Points Pipe tie rail down side. 50 x 25mm RHS Droppers. (Certified 2,500kg per lashing)



Get a Custom Quote

Or call us today on 07 3393 5100

Get a Custom Quote
Australia’s best trailer sales and maintenance experts.
Modern Transport Engineers produces specialised transport trailers for customer’s seeking market-leading technology.

Quick Links

Contact Us

Modern Transport Engineers Australia Pty Ltd

15 Millennium Place
Tingalpa QLD 4173

office@modtrans.com.au

07 3393 5100
